Fuse - Relay Locations And Types: Specifications
NOTE:
Refer to the Wiring Application for Relay description and location information.
The fuses, which can be replaced by the user, are located below the passenger side foot board and inside the trunk.

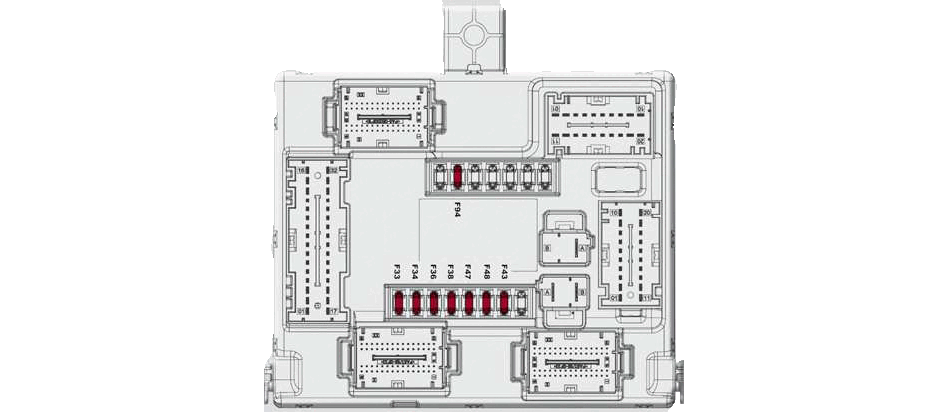

PASSENGER SIDE CONTROL UNIT
| FUNCTION | FUSE | AMPERAGE |
|---|---|---|
| Front power window (driver side) | F33 | 25 |
| Front power window (passenger side) | F34 | 25 |
| Supply for Connect system, Climate Control system, Alarm, Electric door mirror folding, EOBD system, USB port | F36 | 15 |
| Safe Lock device (driver side door unlock - if equipped), Doors unlock, Central lock | F38 | 20 |
| Windshield washer pump | F43 | 20 |
| Rear power window (driver side) | F47 | 25 |
| Rear power window (passenger side) | F48 | 25 |
| Rear window defogger, cigar lighter | F94 | 15 |

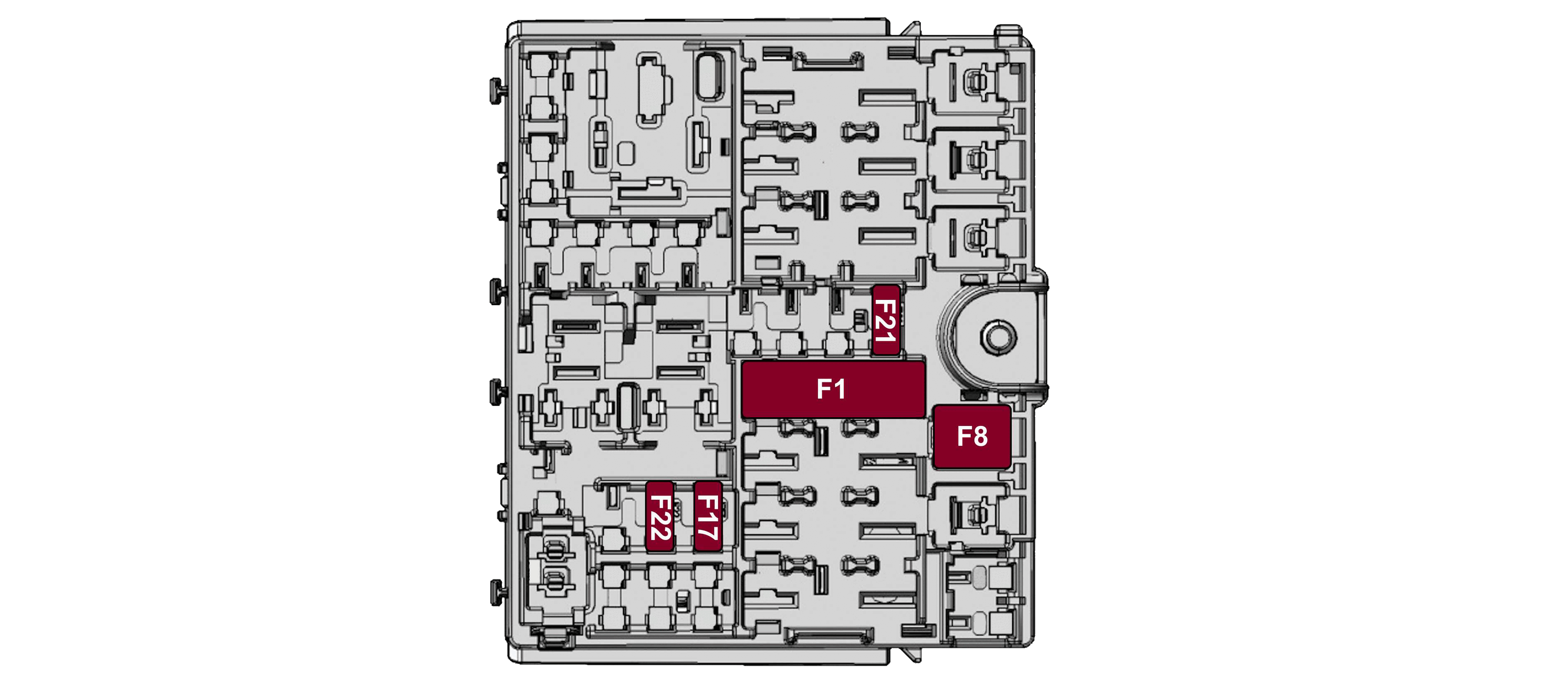

LUGGAGE COMPARTMENT CONTROL UNIT
| FUNCTION | FUSE | AMPERAGE |
|---|---|---|
| Tow hook module (TTM) | F1 | 40 |
| Hi-Fi system | F8 | 30 |
| KL15/a USB Recharge (C070) | F17 | 7.5 |
| I-Drive / USB / AUX port | F21 | 10 |
| KL15/a 12V Power outlet (R053) | F22 | 20 |
