Fuel Vapor System Seal Integrity Control Device

REMOVAL

1. Remove the vapor canister. Refer to CANISTER, VAPOR, REMOVAL AND INSTALLATION CANISTER, VAPOR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

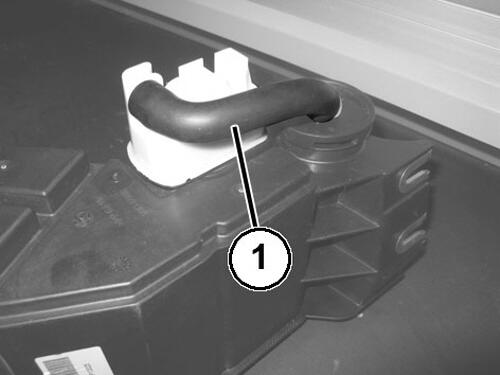

2. Disconnect the fuel vapor line (1) from the device.

   Courtesy of CHRYSLER GROUP, LLC

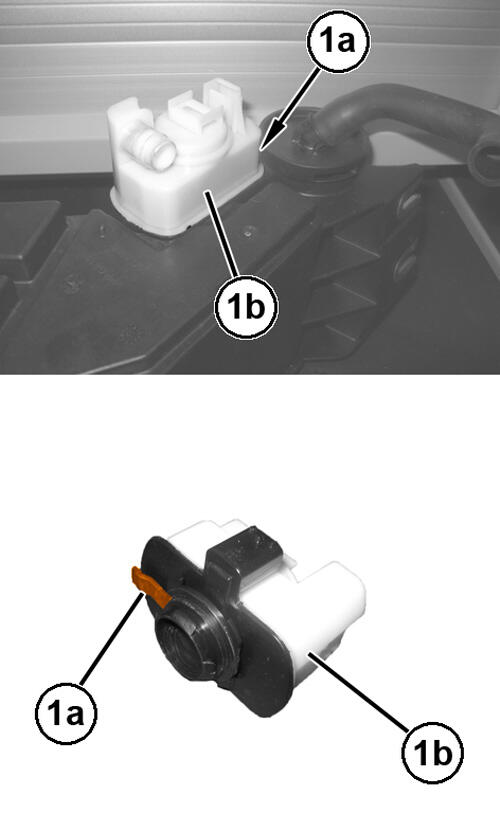

3. Use the attachment clip (1a) to turn and remove the fuel vapor system seal integrity check device (1b).

INSTALLATION

1. Install the fuel vapor system seal integrity check device in its position, turn it and engage the retaining clip.
2. Connect the fuel vapor line to the device.
3. Install the vapor canister. Refer to CANISTER, VAPOR, REMOVAL AND INSTALLATION .
