Line Between Vapor Passage Confirmation Solenoid Valve And Turbocharger Intake

REMOVAL

1. Remove the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

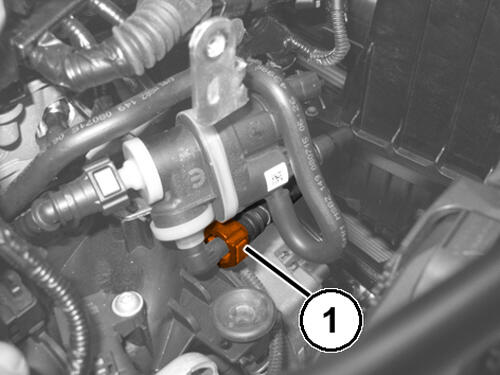

2. Disconnect the line quick coupling (1) between the evaporative emission flow enablement solenoid valve and the turbocharger intake.

   Courtesy of CHRYSLER GROUP, LLC

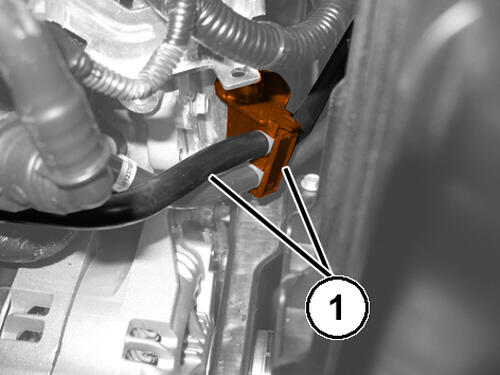

3. Open the clamp (1) and release the line between the evaporative emission flow enablement solenoid valve and the turbocharger intake.

   Courtesy of CHRYSLER GROUP, LLC

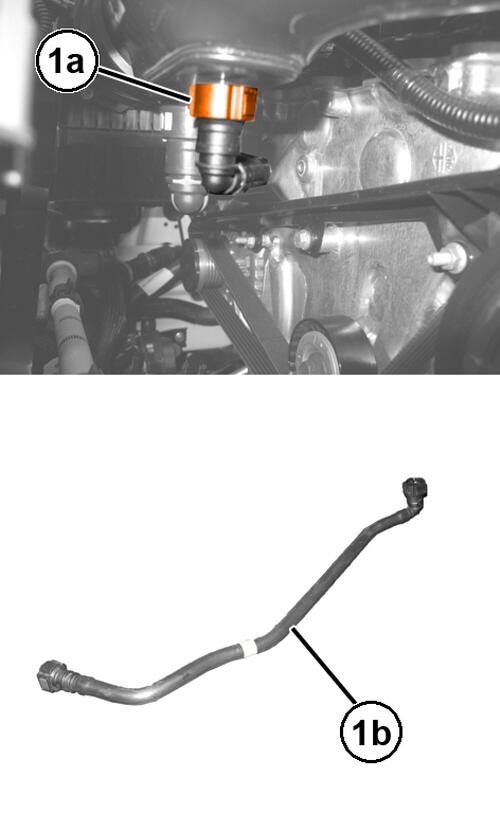

4. Disconnect the line quick coupling (1a) between the evaporative emission flow enablement solenoid valve and the turbocharger intake (1b).

INSTALLATION

1. Install the evaporative emission flow enablement solenoid valve pipe back in its housing, engage it in the retaining clip and connect the quick couplings.
2. Install the engine covers. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
