Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
3. Remove the left rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

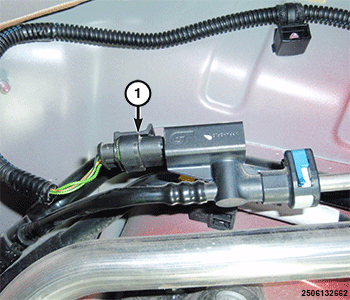

4. Disconnect the fuel tank pressure sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

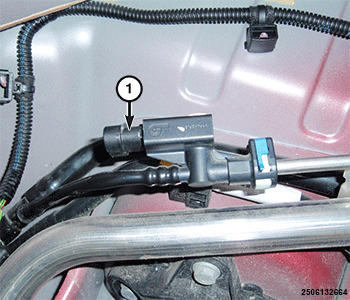

5. Carefully disengage the lock tab, rotate a 1/4 turn clockwise and lift up to remove the fuel tank pressure sensor (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the fuel tank pressure sensor (1) and rotate a 1/4 turn counter clockwise to engage the lock tab.

   Courtesy of CHRYSLER GROUP, LLC

2. Connect the fuel tank pressure sensor wire harness connector (1).
3. Install the left rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
4. Remove support and lower the vehicle.
5. Connect the negative battery cable.
