EGR Temperature Sensor

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

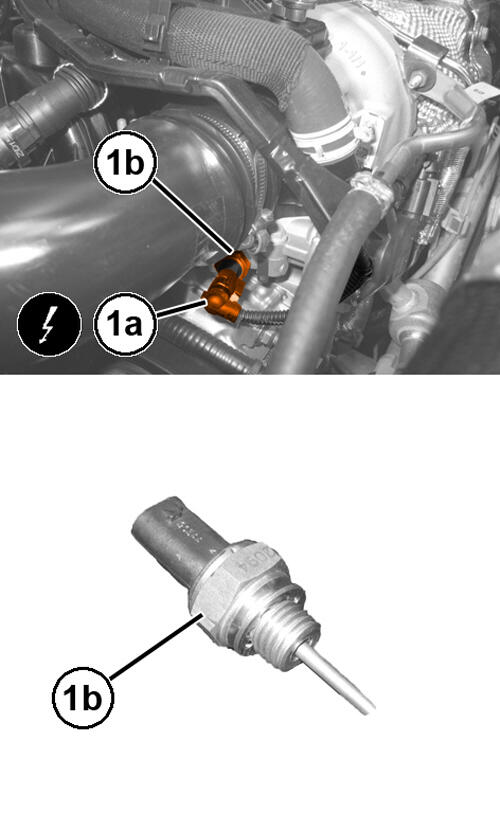

2. Disconnect the low pressure EGR temperature sensor wire harness connector (1a).
3. Remove the low pressure EGR temperature sensor (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

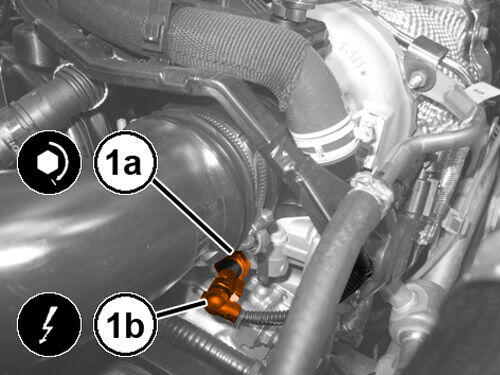

1. Install the low pressure EGR temperature sensor (1a) and tighten it to the proper specification. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
2. Connect the low pressure EGR temperature sensor wire harness connector (1b).
3. Connect the negative battery cable.
