Low Pressure EGR Valve

REMOVAL

1. Remove the intake bypass pipe connector to turbocharger. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

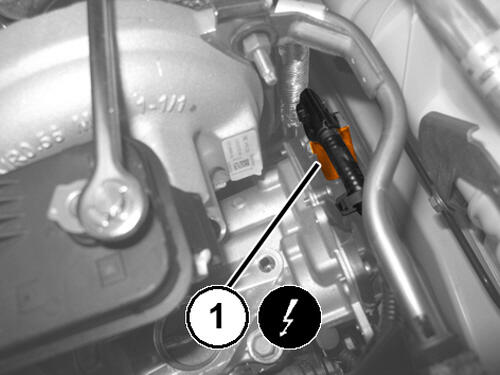

2. Disconnect the low pressure EGR valve wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

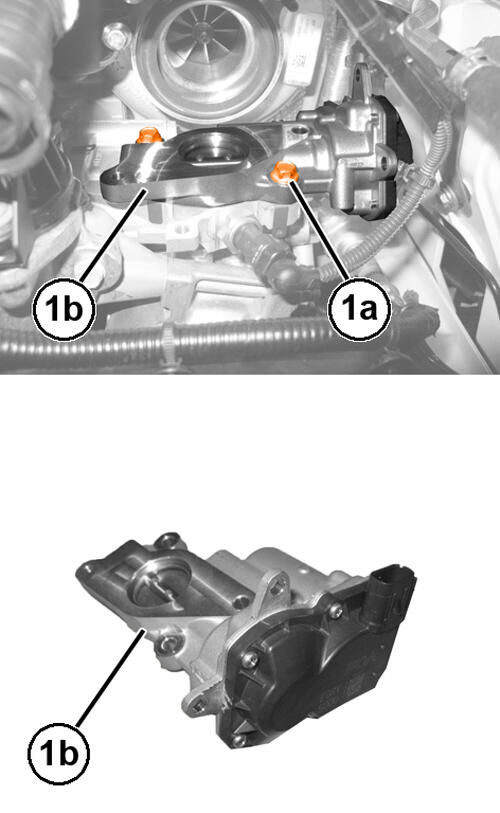

3. Remove the bolts (1a) and the low pressure EGR valve (1b).
4. Remove the gasket.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

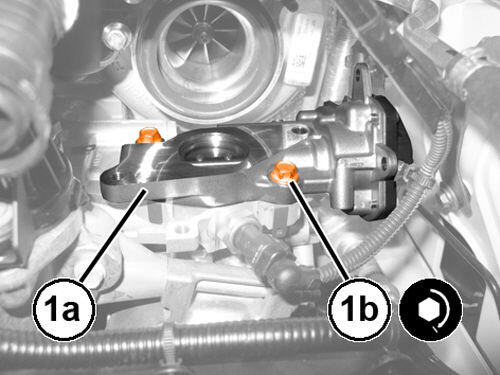

1. Using a NEW  gasket, install the low pressure EGR valve (1a) and tighten the bolts (1b) to the proper specification. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
2. Connect the low pressure EGR valve wire harness connector.
3. Install the intake bypass pipe connector to turbocharger. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
