Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

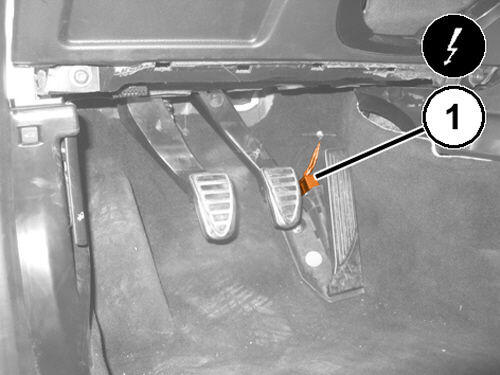

2. Detach the wire harness connector (1) for the accelerator pedal.

   Courtesy of CHRYSLER GROUP, LLC

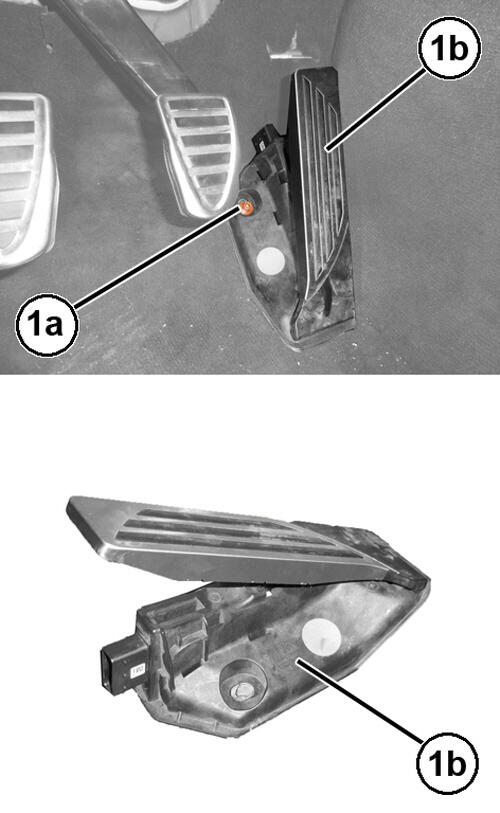

3. Remove the screw (1a) and remove the accelerator pedal with built-in potentiometer (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

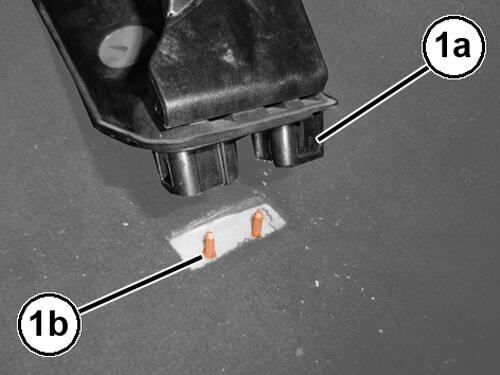

1. Place the accelerator pedal in its housing, taking care to engage the blocks (1a) with the studs (1b) on the body.

   Courtesy of CHRYSLER GROUP, LLC

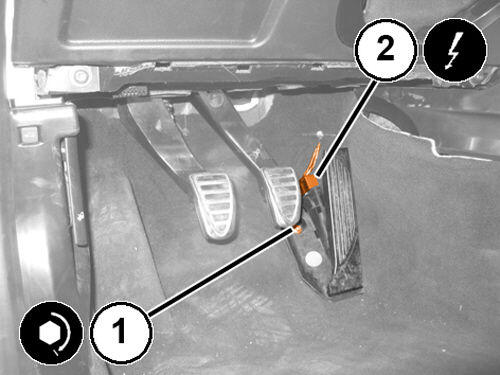

2. Tighten the accelerator pedal retaining screw (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
3. Connect the accelerator pedal wire harness connector.
4. Connect the negative battery cable.
