Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

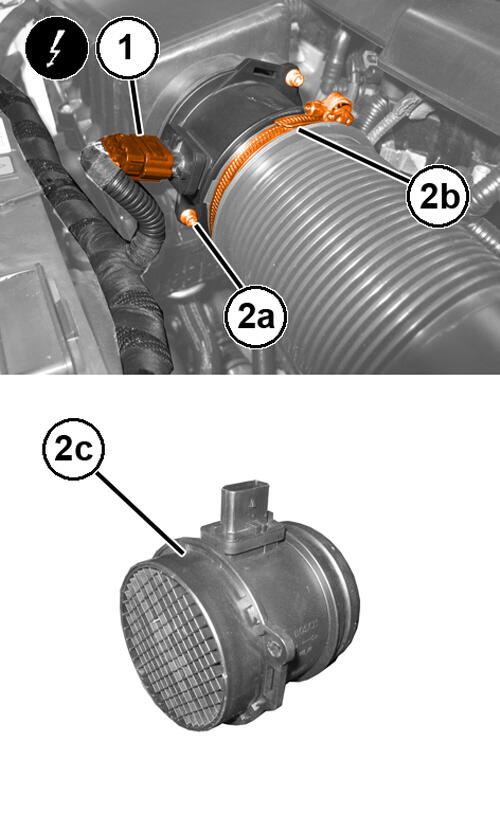

2. Disconnect the mass air flow meter wire harness connection (1).
3. Remove the screws (2a), loosen the clamp (2b) and remove the mass air flow meter (2c).

   Courtesy of CHRYSLER GROUP, LLC

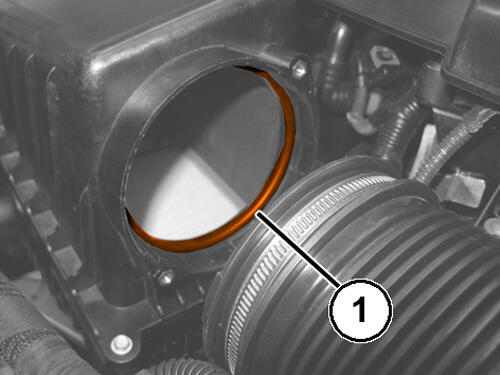

4. Remove the O-ring (1) from the air filter housing.

INSTALLATION

1. Install a NEW  O-ring in the air filter housing.
2. Install the mass air flow meter, securely tighten the clamp and screws.
3. Connect the mass air flow meter wire harness connection.
4. Connect the negative battery cable.
