Idler Pulley

REMOVAL

1. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

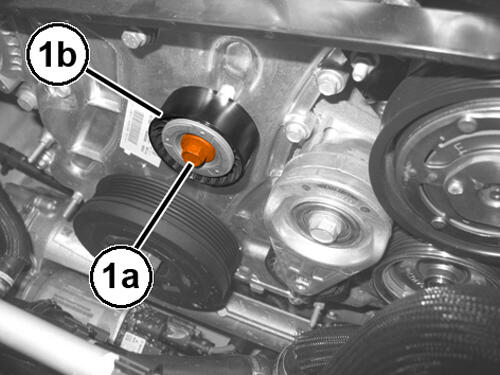

2. Remove the bolt (1a) and the idler pulley (1b).

INSTALLATION

1. Install the idler pulley and tighten the bolt to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE  .
2. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
