Coolant Return Hose From Turbocharger And Turbocharger Radiator Degassing System

REMOVAL

1. Drain the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .

   Courtesy of CHRYSLER GROUP, LLC

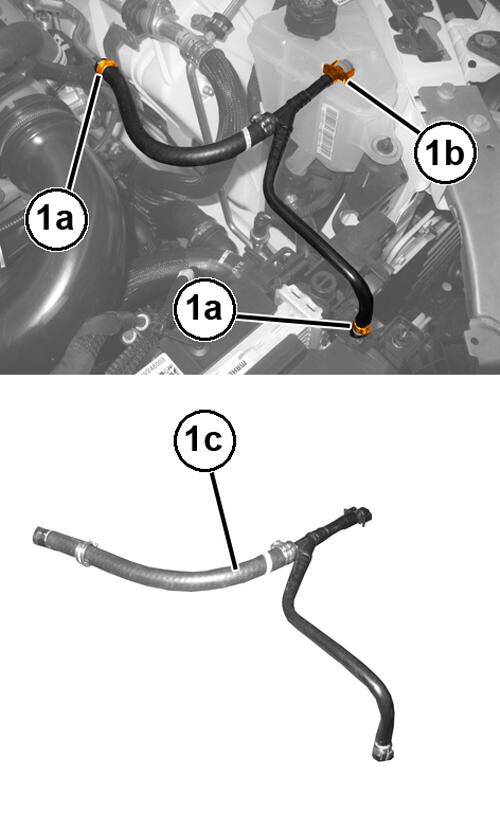

2. Remove the clamps (1a), quick coupling (1b) and remove the coolant liquid return hose from the turbocharger and turbocharger radiator degassing system (1c).

INSTALLATION

1. Install the engine coolant liquid return hose to the turbocharger and turbocharger radiator degassing system and secure clamps.

   Fill the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .
