Water Pump

REMOVAL

1. Remove the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .
2. Drain the engine cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM  .

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect the quick connector (1) and remove the engine coolant inlet hose from the water pump inlet tube.

   Courtesy of CHRYSLER GROUP, LLC

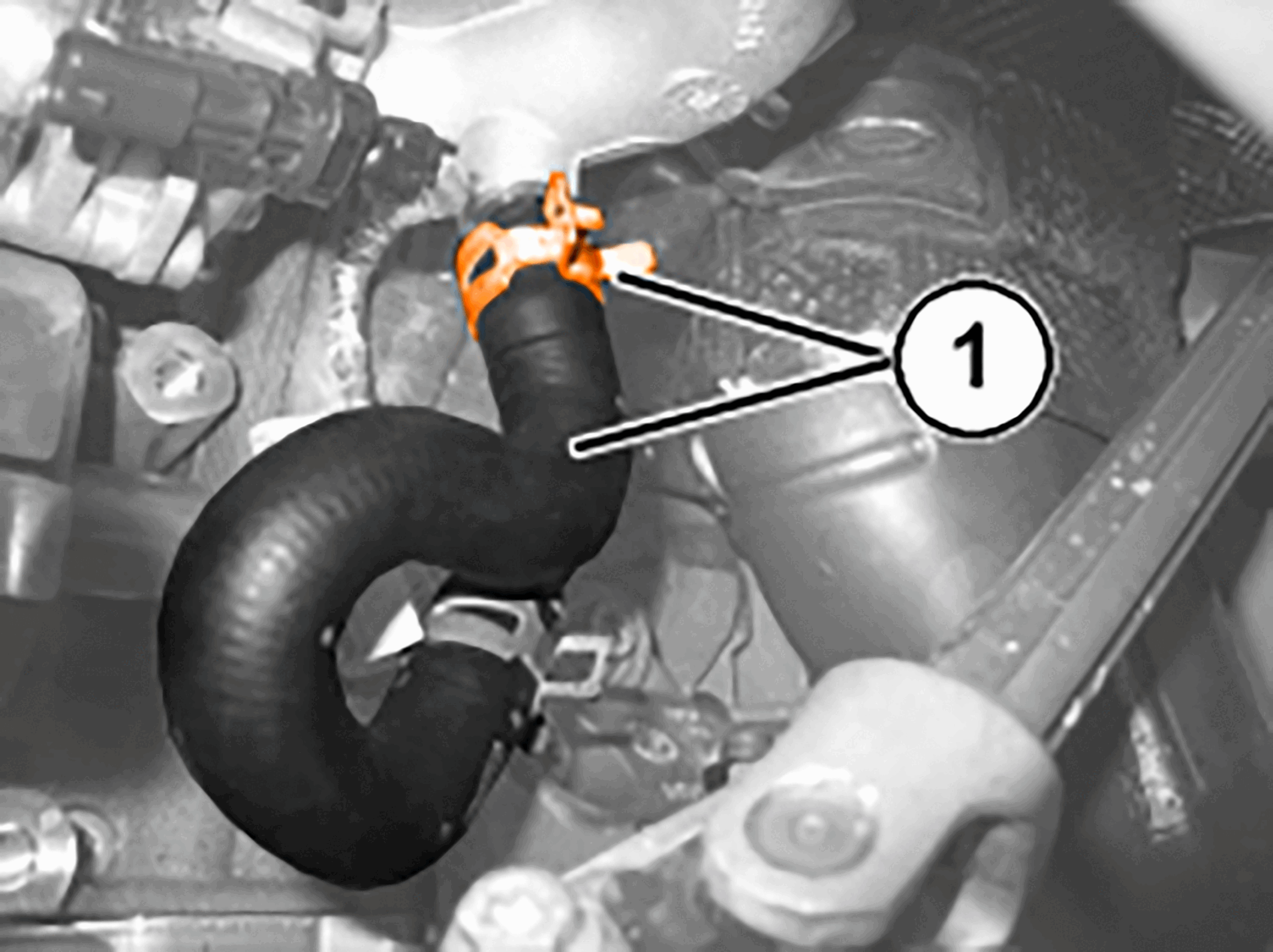

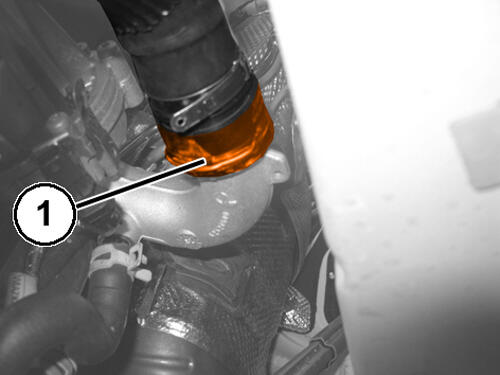

4. Loosen the clamp (1) and disconnect the engine coolant outlet from the engine oil heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

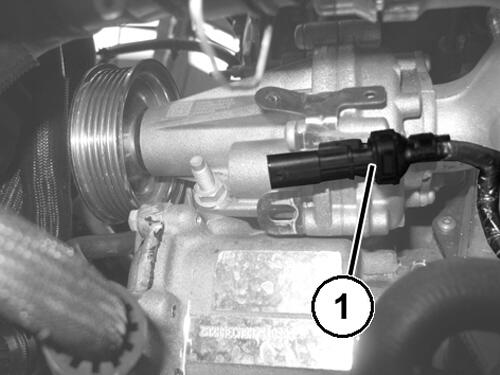

5. Disconnect the wire harness connector (1) from the engine oil pump displacement control solenoid valve.

   Courtesy of CHRYSLER GROUP, LLC

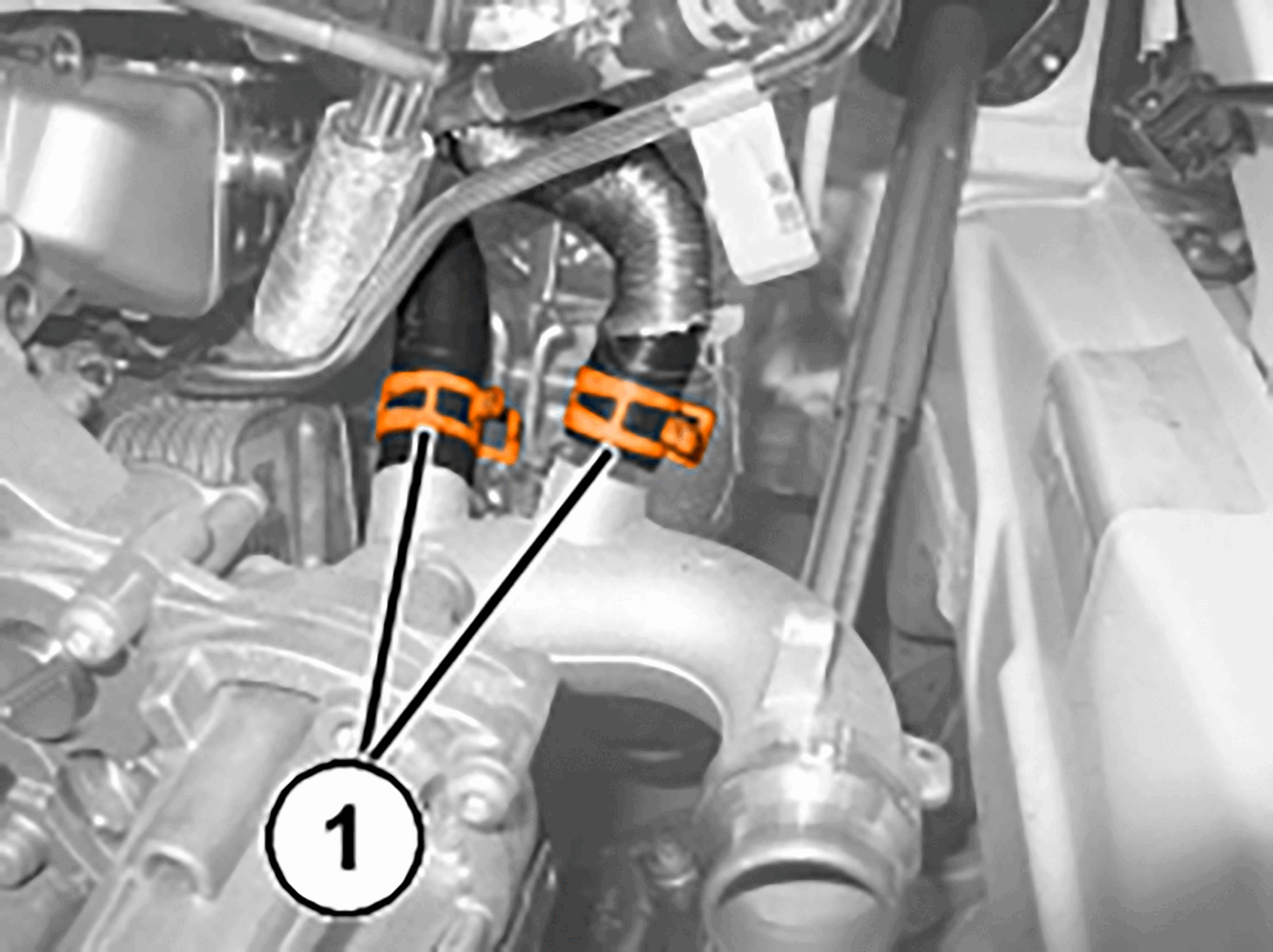

6. Loosen and move back the clamps (1) for the engine coolant inlet pipe to the connection.

   Courtesy of CHRYSLER GROUP, LLC

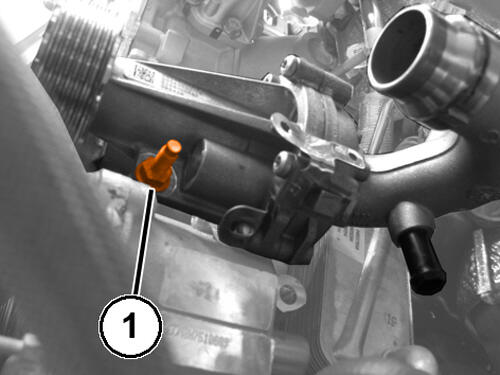

7. Remove the stud bolt (1) securing the water pump to the engine block.

   Courtesy of CHRYSLER GROUP, LLC

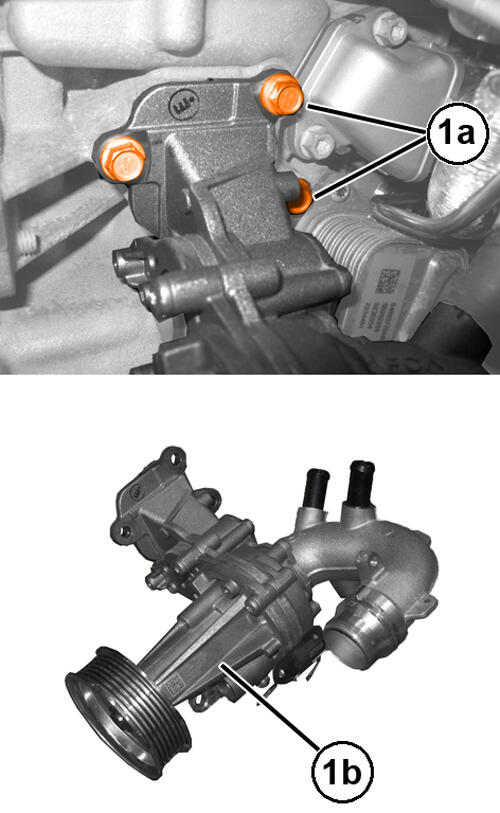

8. Remove the bolts (1a) and the water pump (1b) from the engine block.

   Courtesy of CHRYSLER GROUP, LLC

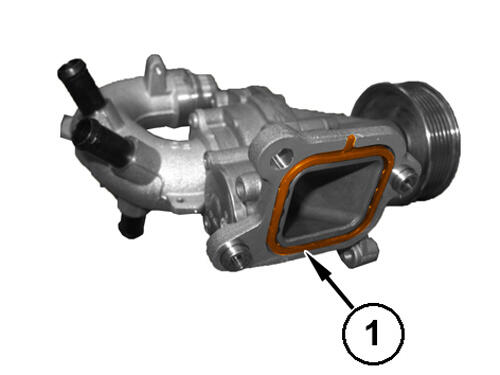

9. Remove the seal (1).

   Courtesy of CHRYSLER GROUP, LLC

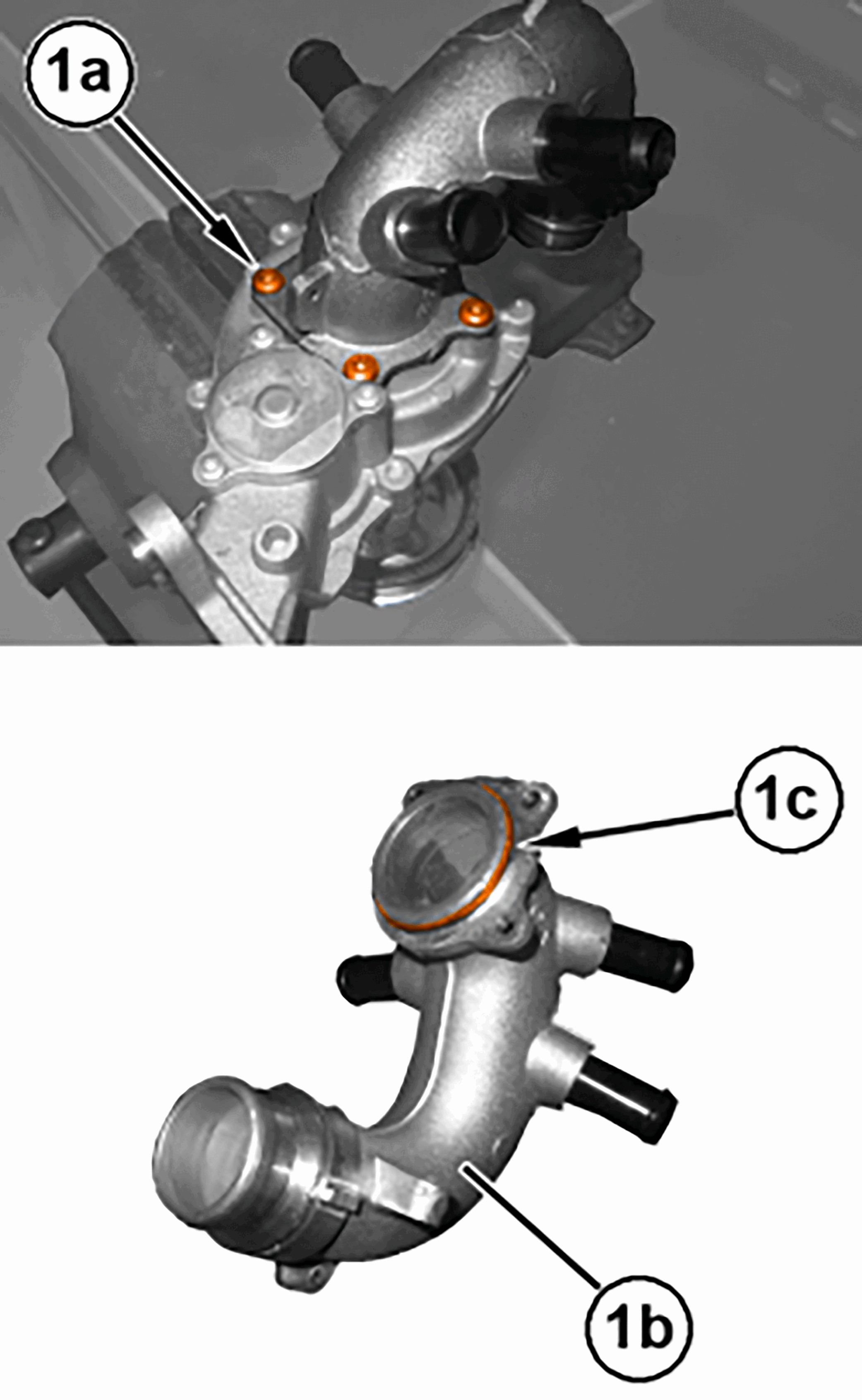

10. If necessary, position the water pump in the vice, undo the screws (1a) and remove the connector (1b) complete with O-ring (1c).

INSTALLATION

1. If removed, position the water pump in the vice, install the connector with a NEW  O-ring and securely tighten the screws.

   Install a NEW  water pump seal.

   Courtesy of CHRYSLER GROUP, LLC

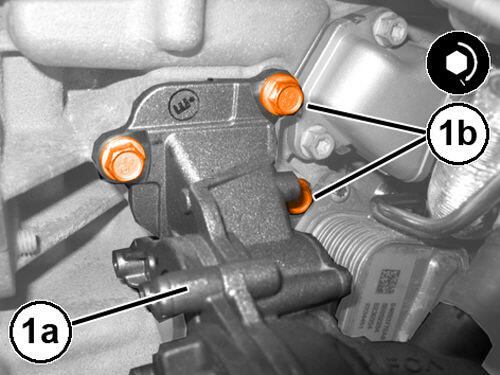

2. Install the water pump (1a) and tighten the bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE  .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the stud bolt (1) securing the water pump to the engine block and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE  .

   Courtesy of CHRYSLER GROUP, LLC

4. Install the engine coolant inlet pipes and clamps (1) to the connection.

   Courtesy of CHRYSLER GROUP, LLC

5. Connect the engine oil pump displacement control solenoid valve wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the engine coolant outlet hose from the engine oil heat exchanger and clamp (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Install the quick connector (1) of the engine coolant inlet hose to the water pump inlet tube.
8. Install the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .
9. Fill the cooling system. Refer to DRAINING AND FILLING THE ENGINE COOLING SYSTEM  .
