Hose Between 3 - Way Connector And Throttle Body

REMOVAL

1. Drain the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .
2. Remove the intake air tube. Refer to TUBE, INTAKE AIR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

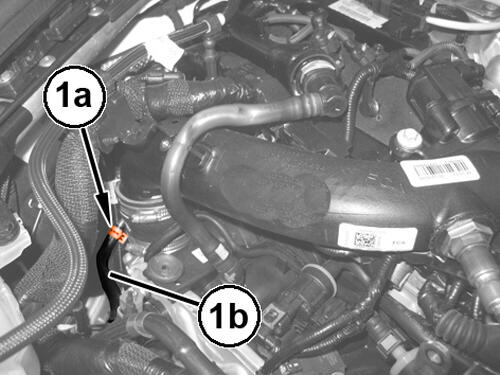

3. Remove the clamp (1a) and coolant supply hose (1b).

   Courtesy of CHRYSLER GROUP, LLC

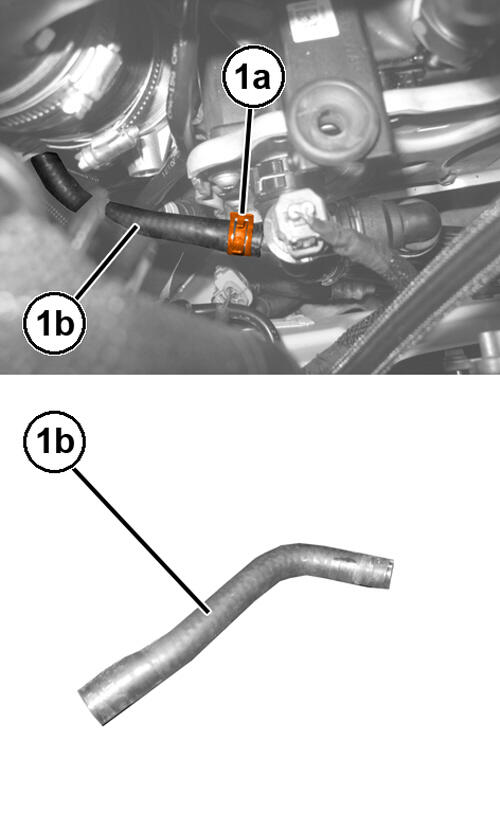

4. Remove the retaining clamp (1a) and coolant supply hose (1b).

INSTALLATION

1. Install the coolant supply hose and retaining clamps.
2. Install the intake air tube. Refer to TUBE, INTAKE AIR, REMOVAL AND INSTALLATION .
3. Fill the turbocharger cooling system. Refer to DRAINING AND FILLING THE TURBOCHARGER COOLING SYSTEM  .
