S1051 (Standard) Connector End View (S1051)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1051

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S1051 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

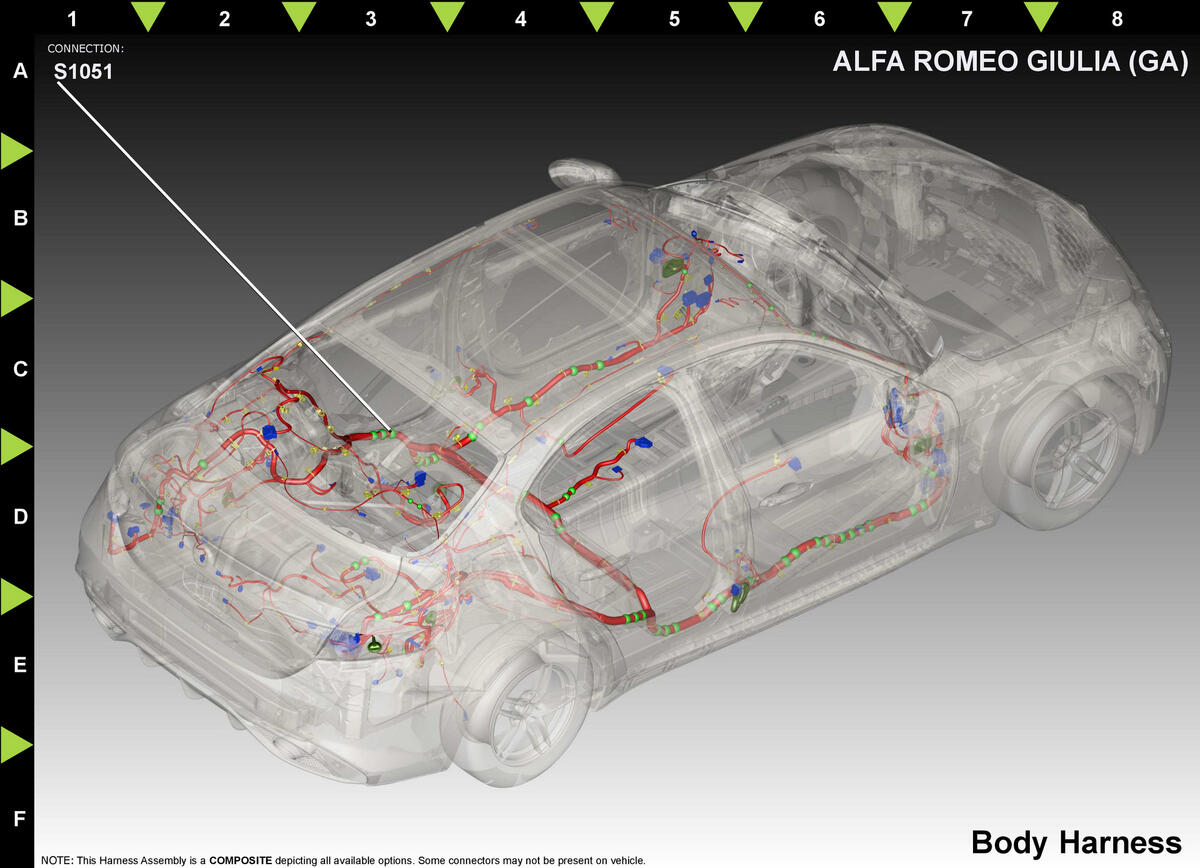

Fig 2: S1051 Component Location (Standard)

GCWD1267238

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

M108

YE/GN

0.5

AMBIENT LIGHTING CONTROL

N/A

2

M108

YE/GN

0.5

AMBIENT LIGHTING CONTROL

N/A

3

M108

YE/GN

0.5

AMBIENT LIGHTING CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
