S1413 (Premium 1) Connector End View (S1413)

Harness-Family: Amplifier_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1413

Option: PREMIUM 1

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S1413 Connector End View (PREMIUM 1)

GCWD1006420

Courtesy of CHRYSLER

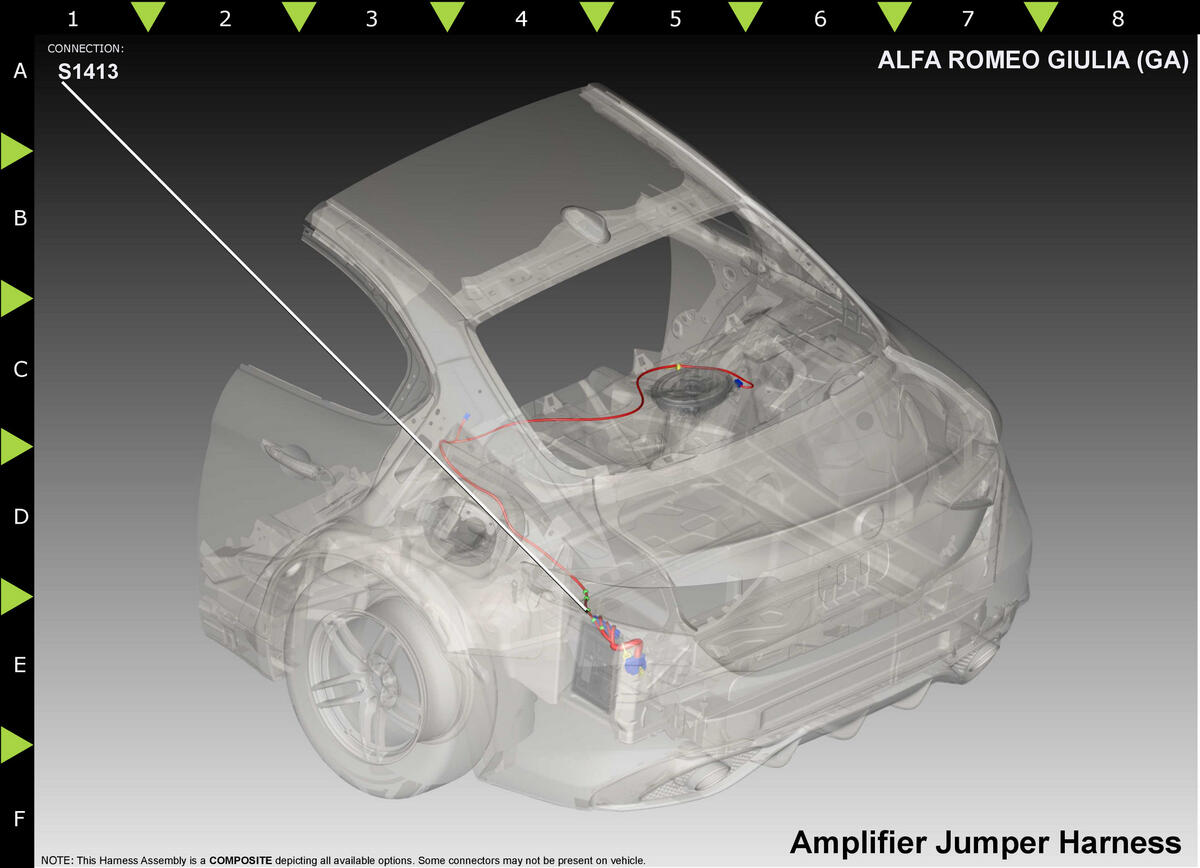

Fig 2: S1413 Component Location (PREMIUM 1)

GCWD1267306

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X300

VT

1.1

AMPLIFIED SUBWOOFER 1 (+)

PREMIUM

2

X300

VT

0.75

AMPLIFIED SUBWOOFER 1 (+)

PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
