S1717 (Standard) Connector End View (S1717)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1717

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S1717 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

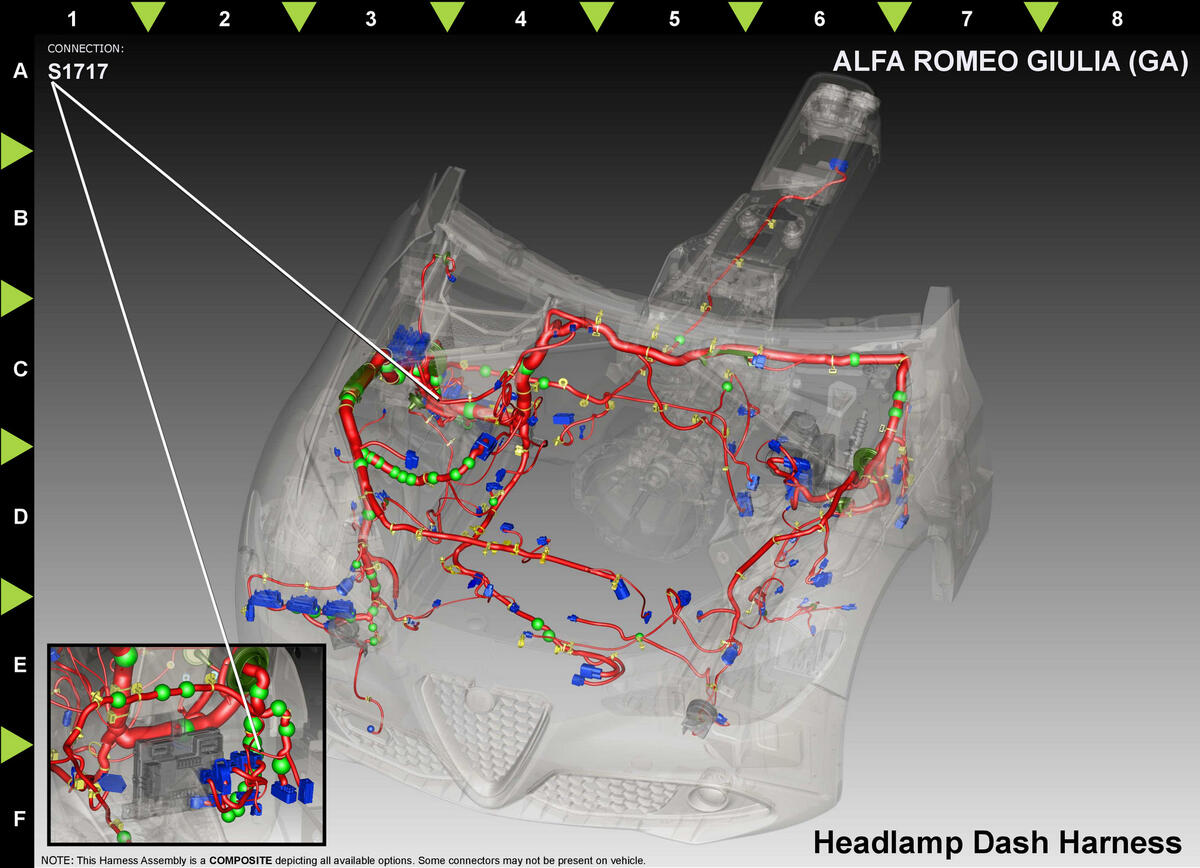

Fig 2: S1717 Component Location (Standard)

GCWD1267439

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D52

GN/WH

0.35

CAN CH (+)

2.0L RWD/2.2L RWD

2

D52

GN/WH

0.35

CAN CH (+)

2.0L RWD/2.2L RWD

3

D52

GN/WH

0.35

CAN CH (+)

2.0L RWD/2.2L RWD

⁽¹⁾	Pins not listed are not used for this connector
