S186 (Standard) Connector End View (S186)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S186

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S186 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

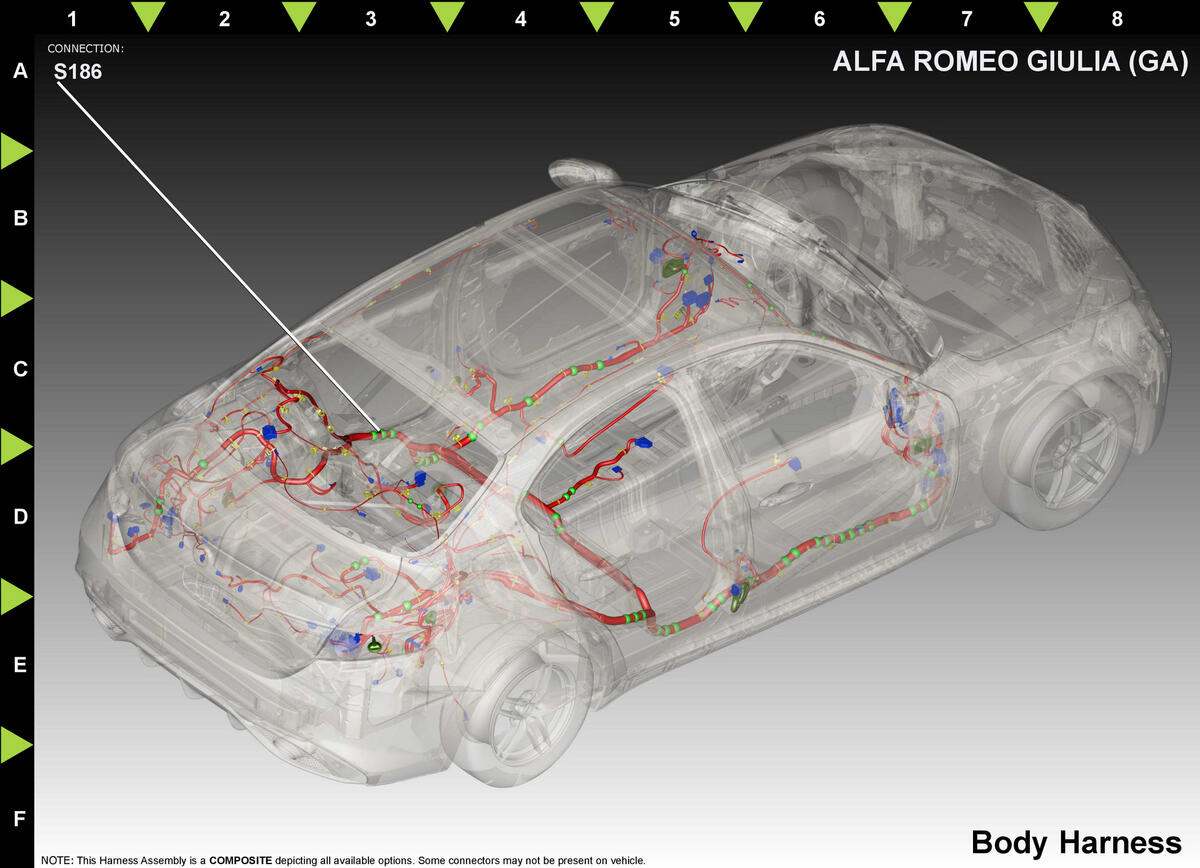

Fig 2: S186 Component Location (Standard)

GCWD1267640

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P112

BN/DB

0.35

AUTO DAY/NIGHT MIRROR (+)

EC MIRROR

2

P112

BN/DB

0.35

AUTO DAY/NIGHT MIRROR (+)

EC MIRROR

3

P112

BN/DB

0.35

AUTO DAY/NIGHT MIRROR (+)

EC MIRROR

⁽¹⁾	Pins not listed are not used for this connector
