S243 (Standard) Connector End View (S243)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S243

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S243 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

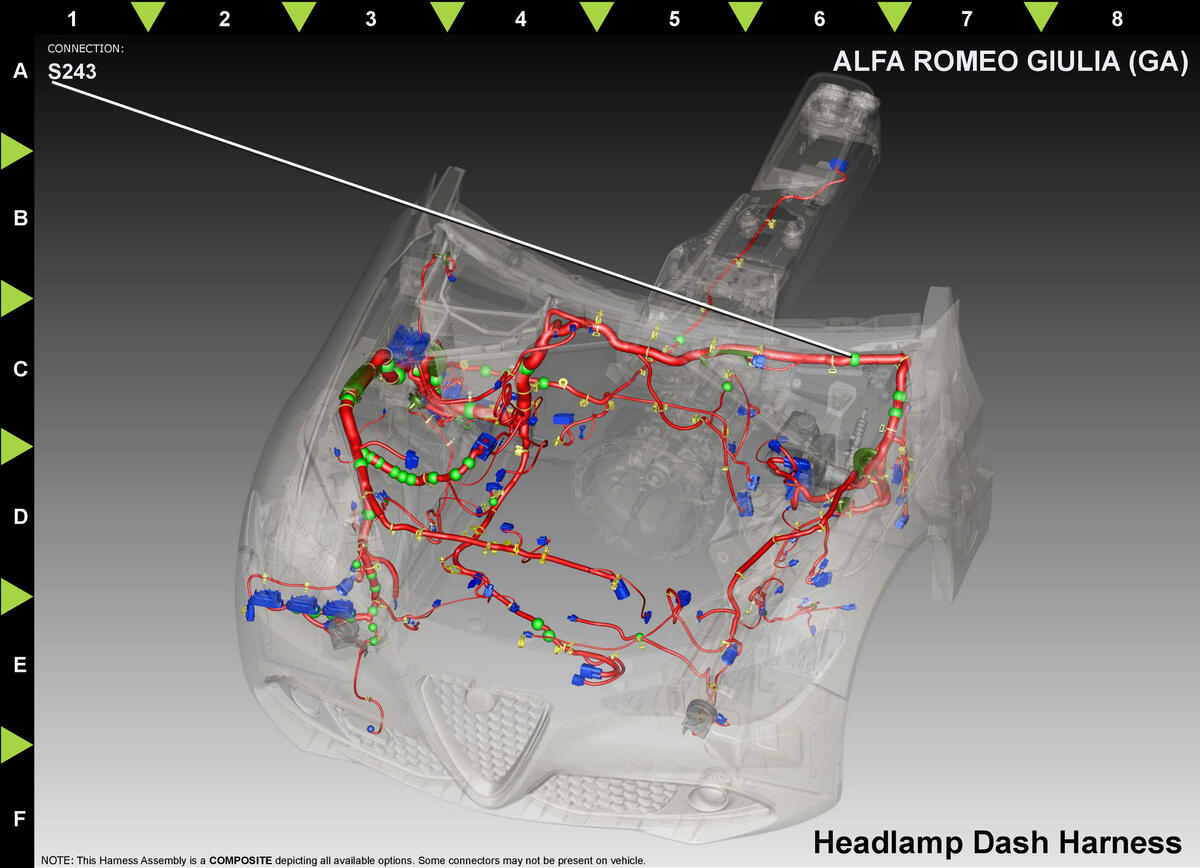

Fig 2: S243 Component Location (Standard)

GCWD1268118

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

B134

GN/WH

0.5

BRAKE SIGNAL 1

2.0L

2

B134

GN/WH

0.35

BRAKE SIGNAL 1

N/A

3

B134

GN/WH

0.35

BRAKE SIGNAL 1

N/A

4

B134

GN/WH

0.35

BRAKE SIGNAL 1

N/A

5

B134

GN/WH

0.35

BRAKE SIGNAL 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
