S006B (2.9L) Connector End View (S006B)

Harness-Family: Injector_LT

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S006B

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S006b Connector End View (2.9L)

GCWD1006420

Courtesy of CHRYSLER

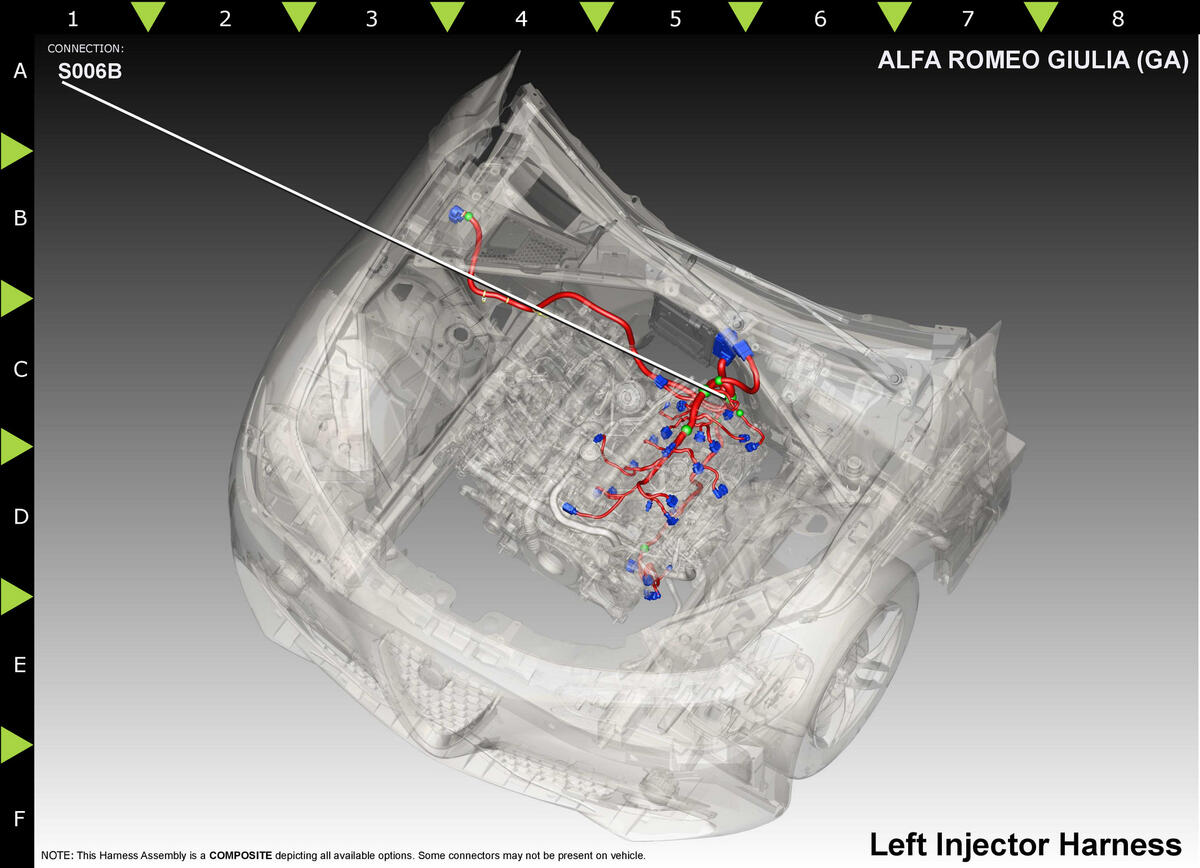

Fig 2: S006b Component Location (2.9L)

GCWD1267517

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K668

RD/GN

0.5

5 VOLT SUPPLY

2.9L

⁽¹⁾	Pins not listed are not used for this connector
