S010 (Standard) Connector End View (S010)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S010

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S010 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

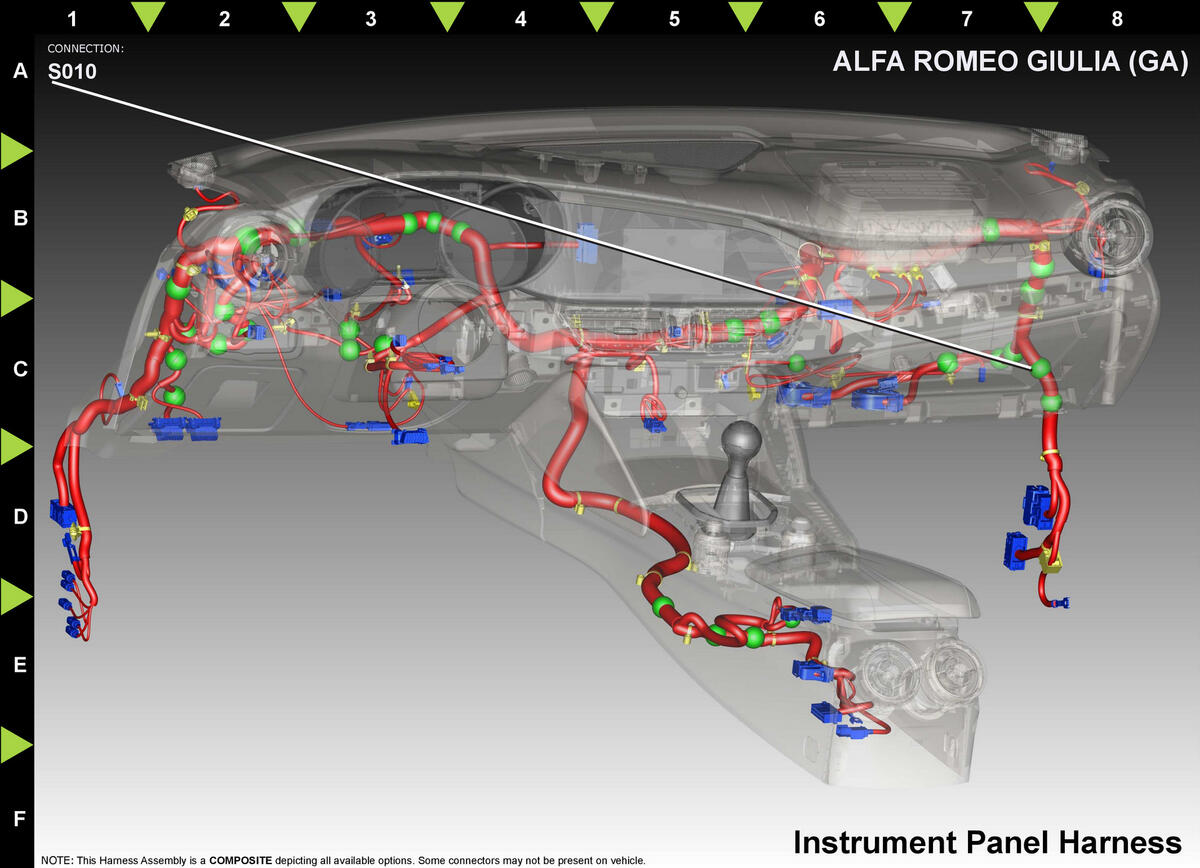

Fig 2: S010 Component Location (Standard)

GCWD1267986

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

D51

BN/WH

0.35

CAN CH (-)

N/A

3

D51

BN/WH

0.35

CAN CH (-)

N/A

4

D51

BN/WH

0.35

CAN CH (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
