S02SA (Standard) Connector End View (S02SA)

Harness-Family: Sunroof_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S02SA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S02sa Connector End View (Standard)

Courtesy of CHRYSLER

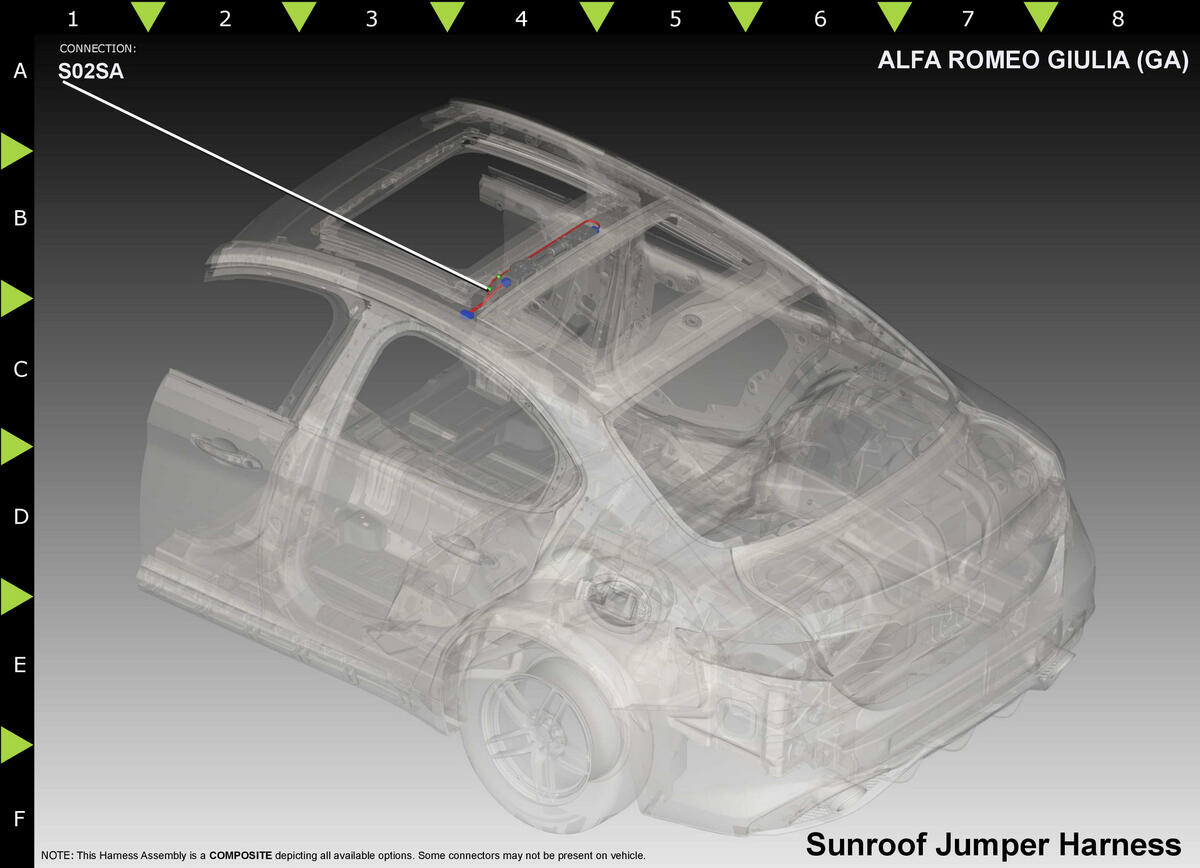

Fig 2: S02sa Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z905

0.35

GROUND

SUNROOF

⁽¹⁾	Pins not listed are not used for this connector
