S034 (Standard) Connector End View (S034)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S034

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S034 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

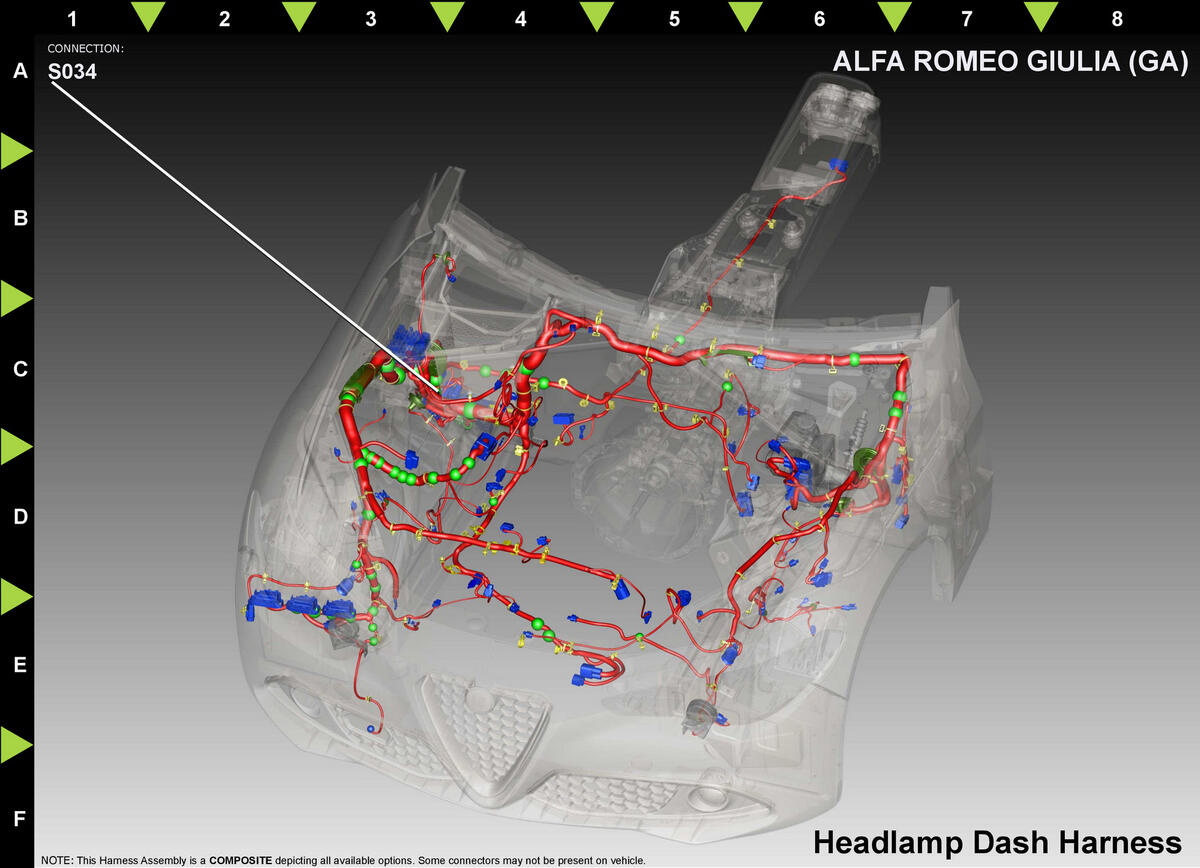

Fig 2: S034 Component Location (Standard)

GCWD1267816

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D51

BN/WH

0.35

CAN CH (-)

AWD

2

D51

BN/WH

0.35

CAN CH (-)

AWD

3

D51

BN/WH

0.35

CAN CH (-)

AWD

⁽¹⁾	Pins not listed are not used for this connector
