S046 (Standard) Connector End View (S046)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S046

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S046 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

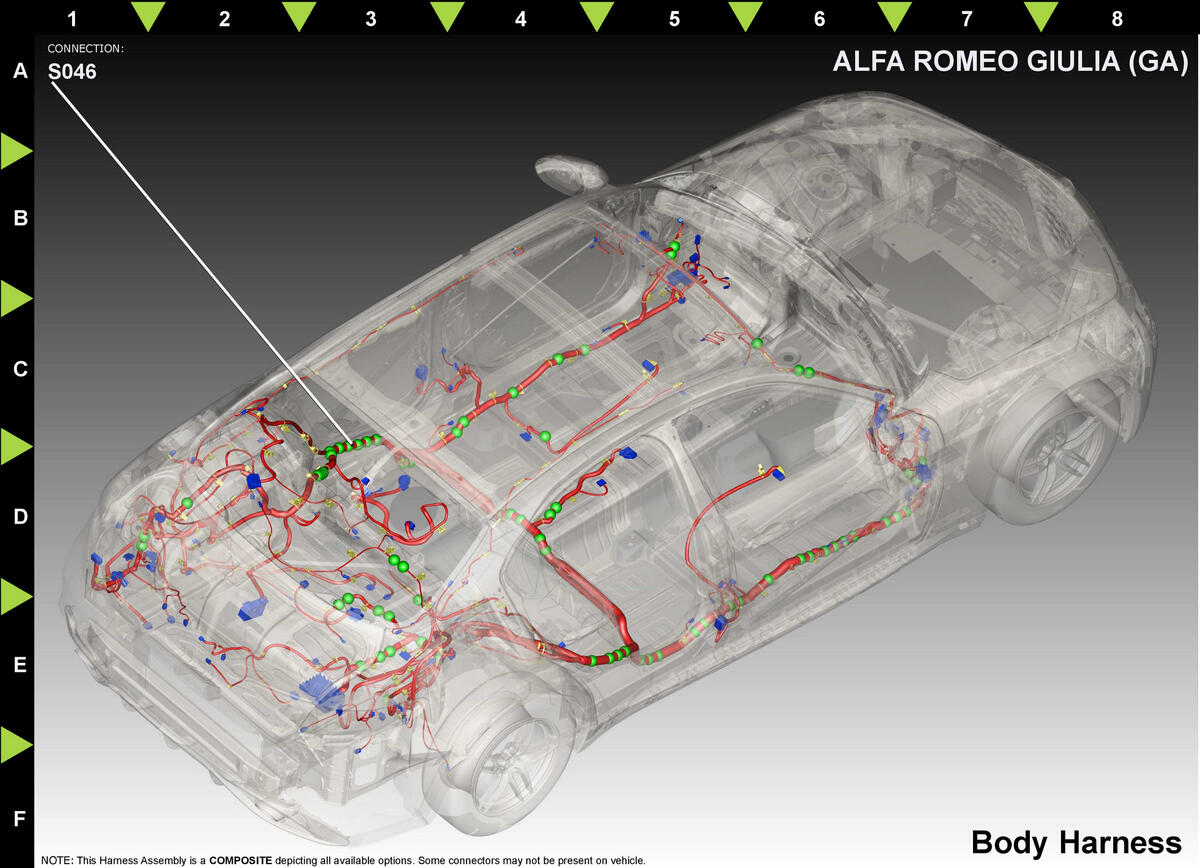

Fig 2: S046 Component Location (Standard)

GCWD1267951

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D469

YE/GN

0.35

PRIVATE CAN (+)

EU6

2

D469

YE/GN

0.35

PRIVATE CAN (+)

EU6

3

D469

YE/GN

0.35

PRIVATE CAN (+)

EU6

4

D469

YE/GN

0.35

PRIVATE CAN (+)

EU6

⁽¹⁾	Pins not listed are not used for this connector
