S061 (Standard) Connector End View (S061)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S061

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S061 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

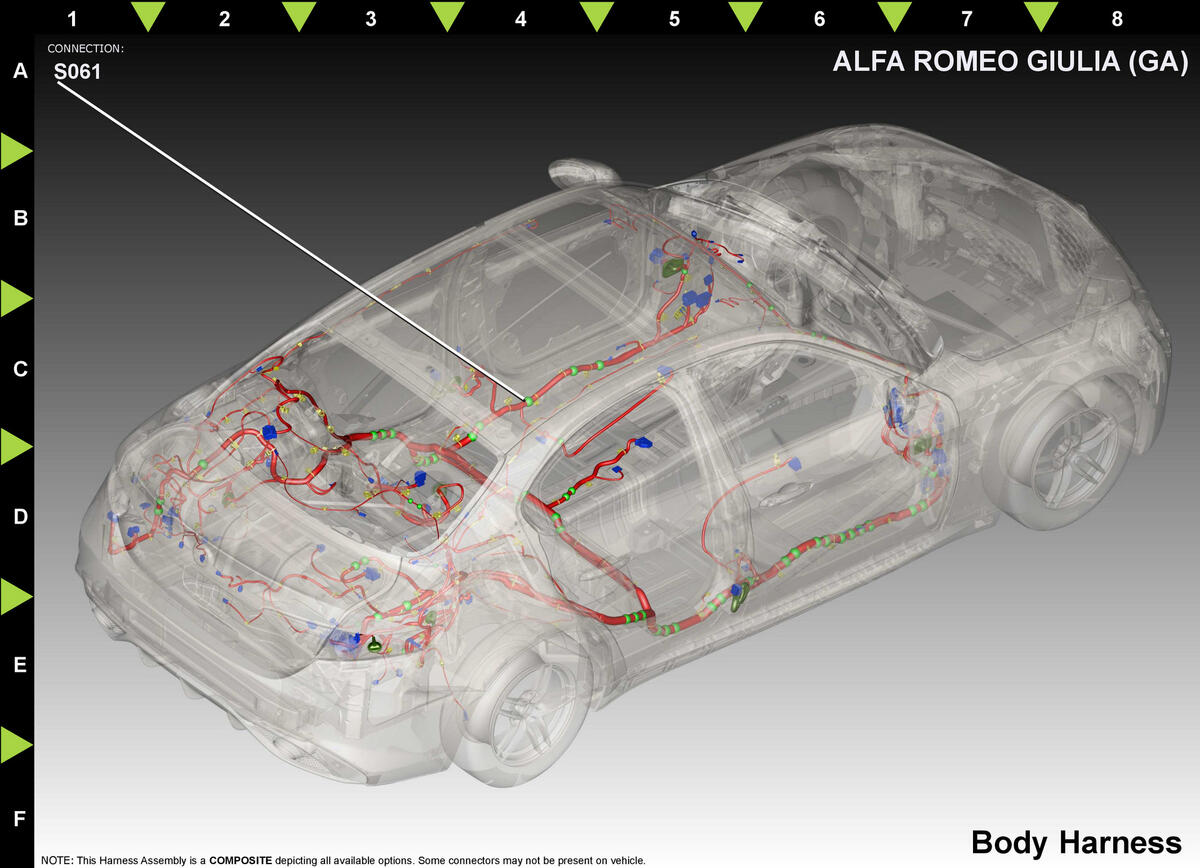

Fig 2: S061 Component Location (Standard)

GCWD1268145

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

2

E3

YE

0.5

PANEL LAMPS DIMMER SWITCH MUX

N/A

3

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

LHD

4

E3

YE

0.5

PANEL LAMPS DIMMER SWITCH MUX

N/A

5

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

6

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

7

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

8

E3

YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

9

E3

YE

0.5

PANEL LAMPS DIMMER SWITCH MUX

N/A

⁽¹⁾	Pins not listed are not used for this connector
