S068 (Standard) Connector End View (S068)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S068

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S068 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

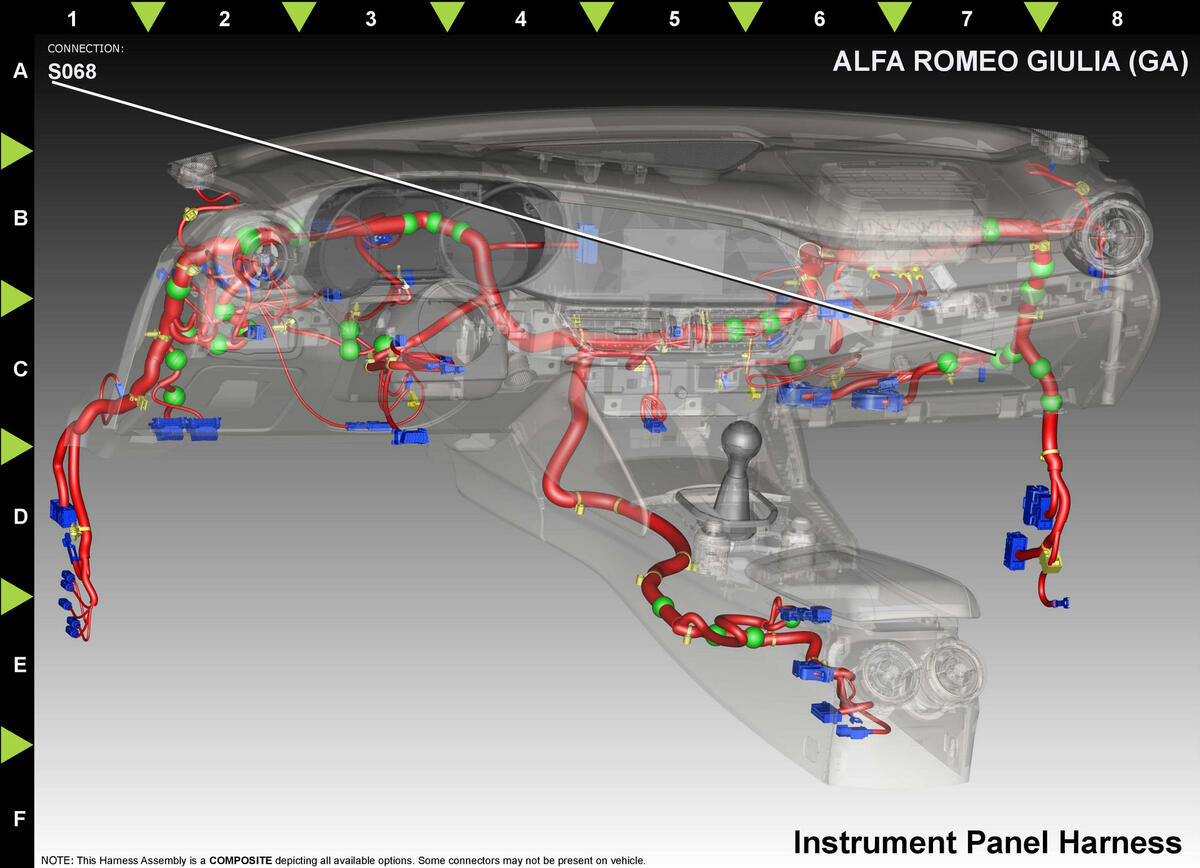

Fig 2: S068 Component Location (Standard)

GCWD1267871

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D402

GY/GN

0.35

LIN BUS 2

PREMIUM

2

D402

GY/GN

0.35

LIN BUS 2

PREMIUM

3

D402

GY/GN

0.35

LIN BUS 2

PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
