S077 (Standard) Connector End View (S077)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S077

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S077 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

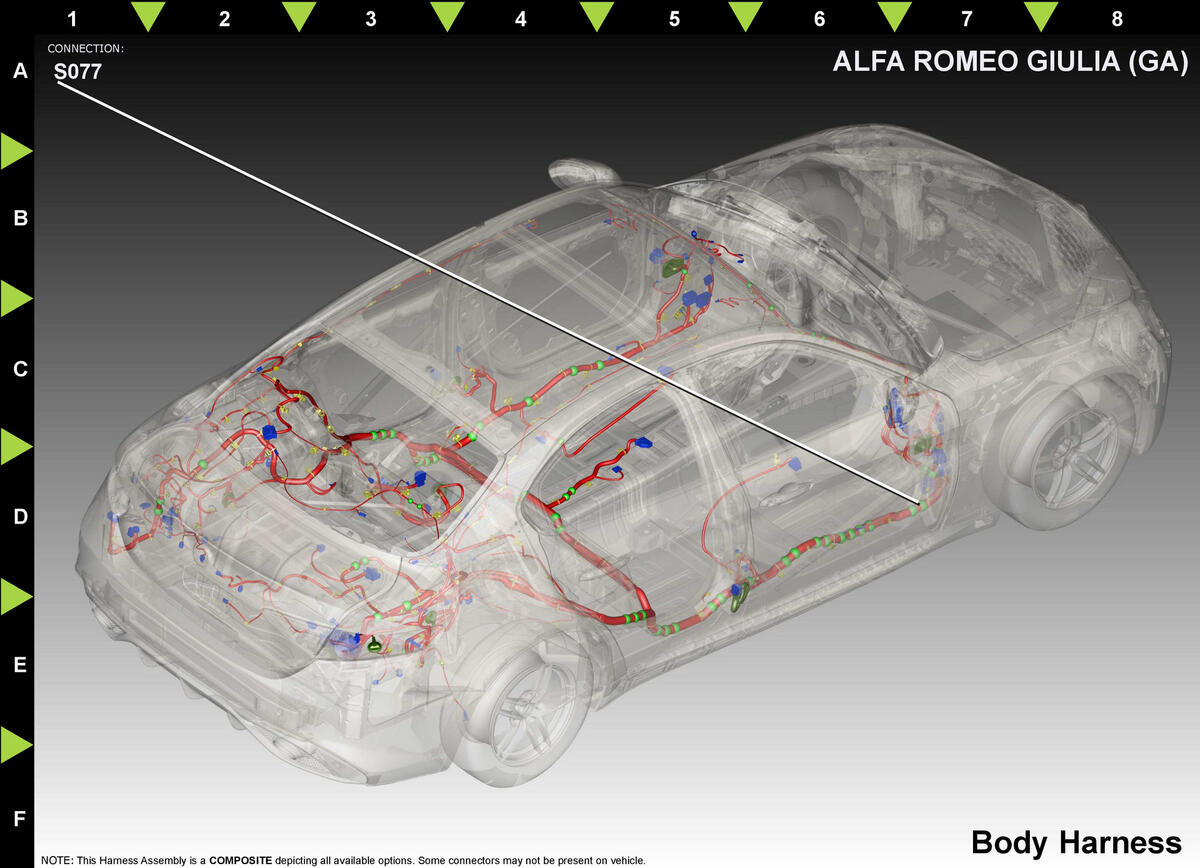

Fig 2: S077 Component Location (Standard)

GCWD1268158

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A901

RD/DB

6

FUSED B(+)

N/A

2

A901

RD/DB

4

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
