Module-Comfort Seat And Steering Wheel C2 (Standard) Connector End View (D3873B)

Harness-Family: Seat_Driver

Color: BLACK

Gender: FEMALE

Part Number: 1376675-1

Part Description: Not Available

Connector No: D3873B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

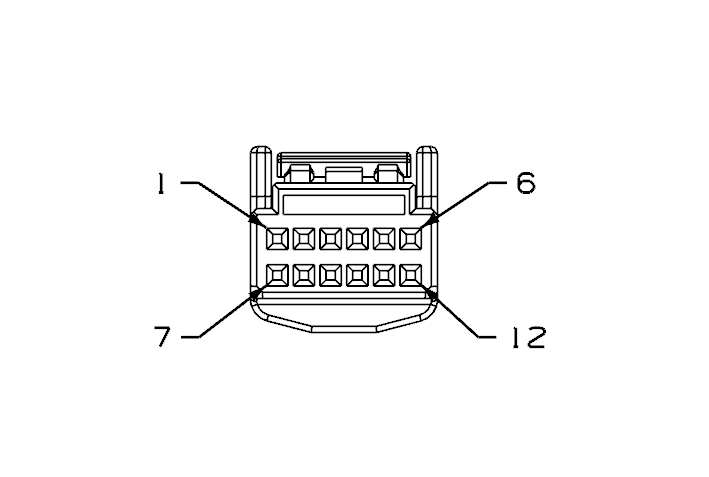

Fig 1: Module-Comfort Seat And Steering Wheel C2 Connector End View (Standard)

Courtesy of CHRYSLER

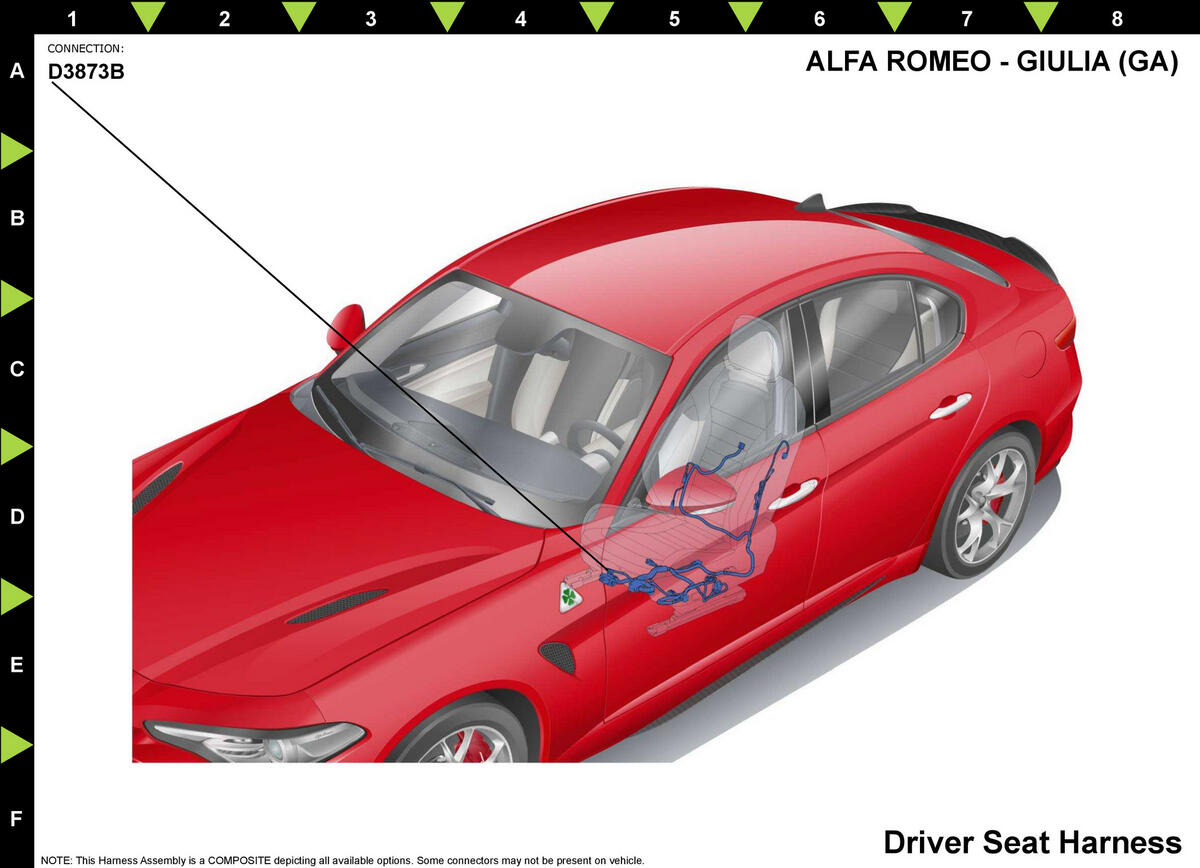

Fig 2: Module-Comfort Seat And Steering Wheel C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D157

PK/DB

0.35

CAN IHS (+)

PREMIUM

D158

BU/BK

0.35

CAN IHS (-)

PREMIUM

P968

YE/DB

0.5

HEATED SEAT SENSOR RETURN

HEATED SEATS

G200

GY/DB

0.5

MEMORY SELECT SWITCH MUX

N/A

P339

0.5

DRIVER SEAT SWITCH FRONT VERTICAL/RECLINER SWITCH MUX

N/A

P239

0.5

DRIVER SEAT SWITCH REAR VERTICAL/HORIZONTAL SWITCH MUX

N/A

P687

0.5

DRIVER FRONT HEATED SEAT TEMP SENSE

N/A

P688

GY/RD

0.5

PASSENGER FRONT HEATED SEAT TEMP SENSE

HEATED SEATS

⁽¹⁾	Pins not listed are not used for this connector
