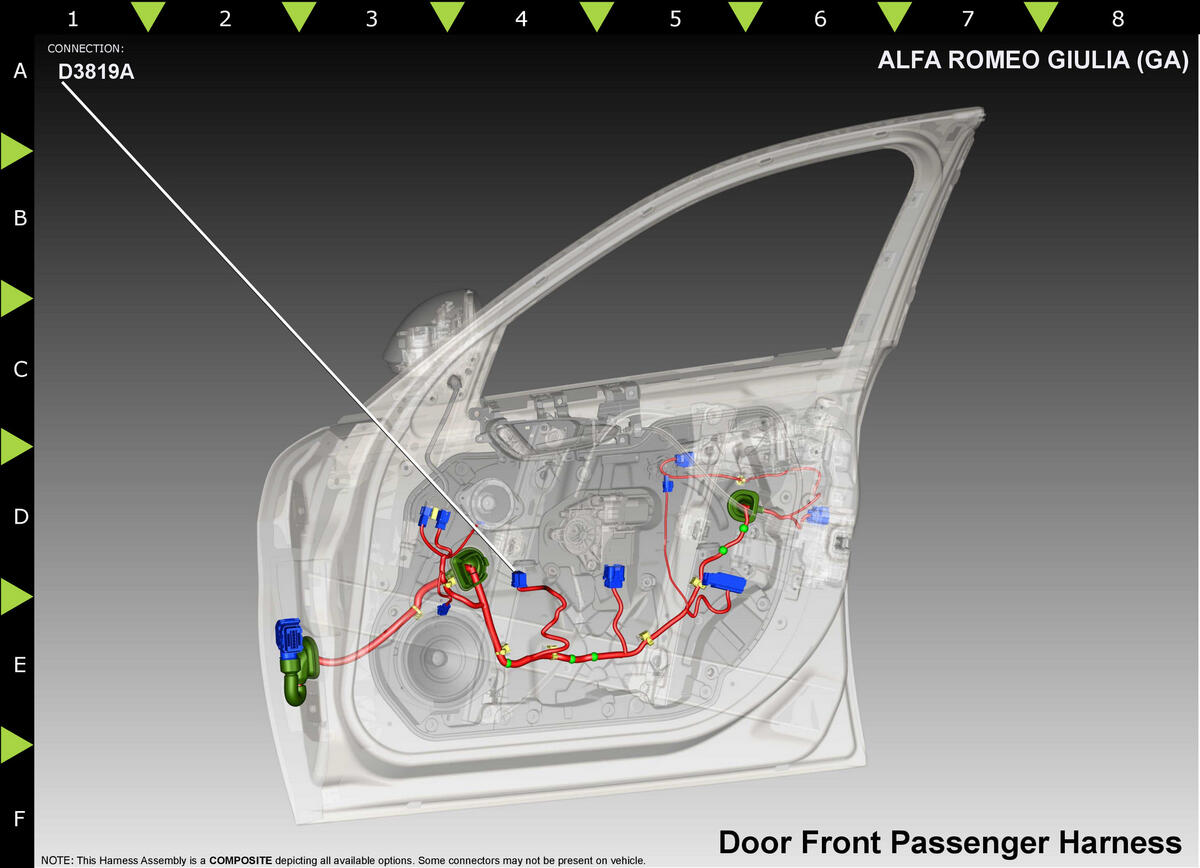

Module-Door-Passenger (Standard) Connector End View (D3819A)
Harness-Family: Door_Front_Pass
Color: BLACK
Gender: FEMALE
Part Number: 34729-0160
Part Description: Not Available
Connector No: D3819A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | A901 | RD/YE | 0.75 | FUSED B(+) | N/A | ||
| 2 | Q336 | BN/GN | 0.5 | PASSENGER WINDOW SWITCH MUX | N/A | ||
| 3 | D403 | GN/YE | 0.35 | LIN BUS 3 | N/A | ||
| 4 | E3 | YE | 0.35 | PANEL LAMPS DIMMER SWITCH MUX | N/A | ||
| 5 | P70 | GY | 0.35 | PASSENGER MIRROR COMMON DRIVER | N/A | ||
| 6 | P74 | GY/YE | 0.35 | PASSENGER MIRROR HORIZONTAL DRIVER | N/A | ||
| 7 | P72 | GY/WH | 0.35 | PASSENGER MIRROR VERTICAL DRIVER | N/A | ||
| 8 | P695 | YE/RD | 0.35 | PASSENGER MIRROR FOLD DRIVER | HEATED MIRRORS | ||
| 10 | A857 | DB/OG | 0.35 | FUSED B(+) | PREMIUM | ||
| 11 | P68 | WH/OG | 0.35 | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL | PREMIUM | ||
| 12 | P64 | GY/BN | 0.35 | PASSENGER MIRROR VERTICAL POSITION SIGNAL | PREMIUM | ||
| 13 | P66 | BK/OG | 0.35 | PASSENGER MIRROR SENSOR GROUND | N/A | ||
| 15 | Z332 | BK | 0.5 | GROUND | N/A | ||
| 16 | P692 | GN/BK | 0.35 | PASSENGER MIRROR UNFOLD DRIVER | HEATED MIRRORS | ||
|
|||||||
