G053A (2.9L) Connector End View (G053A)

Harness-Family: Injector_RT

Color: NA

Gender: FEMALE

Part Number: 25219.213.011

Part Description: Not Available

Connector No: G053A

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G053a Connector End View (2.9L)

GCWD1245112

Courtesy of CHRYSLER

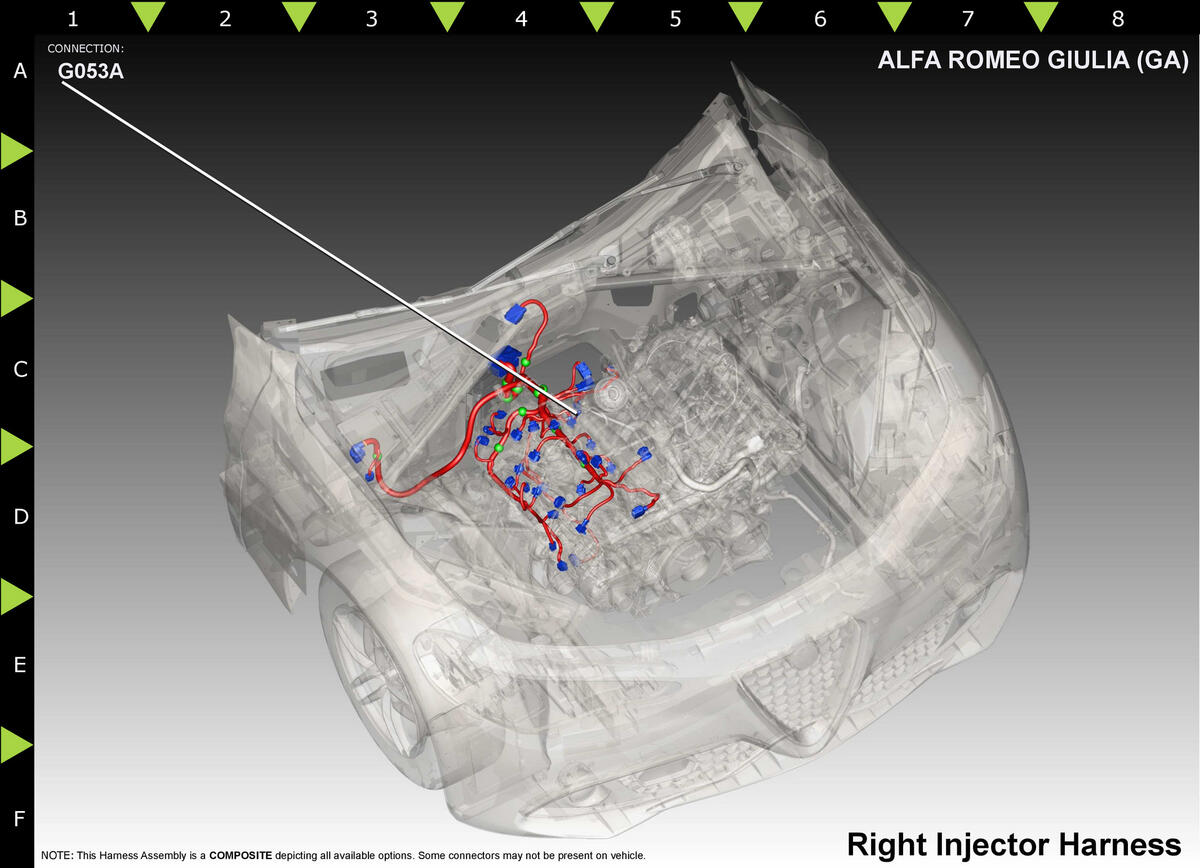

Fig 2: G053a Component Location (2.9L)

GCWD1267809

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z909

BK

2.5

GROUND

2.9L

⁽¹⁾	Pins not listed are not used for this connector
