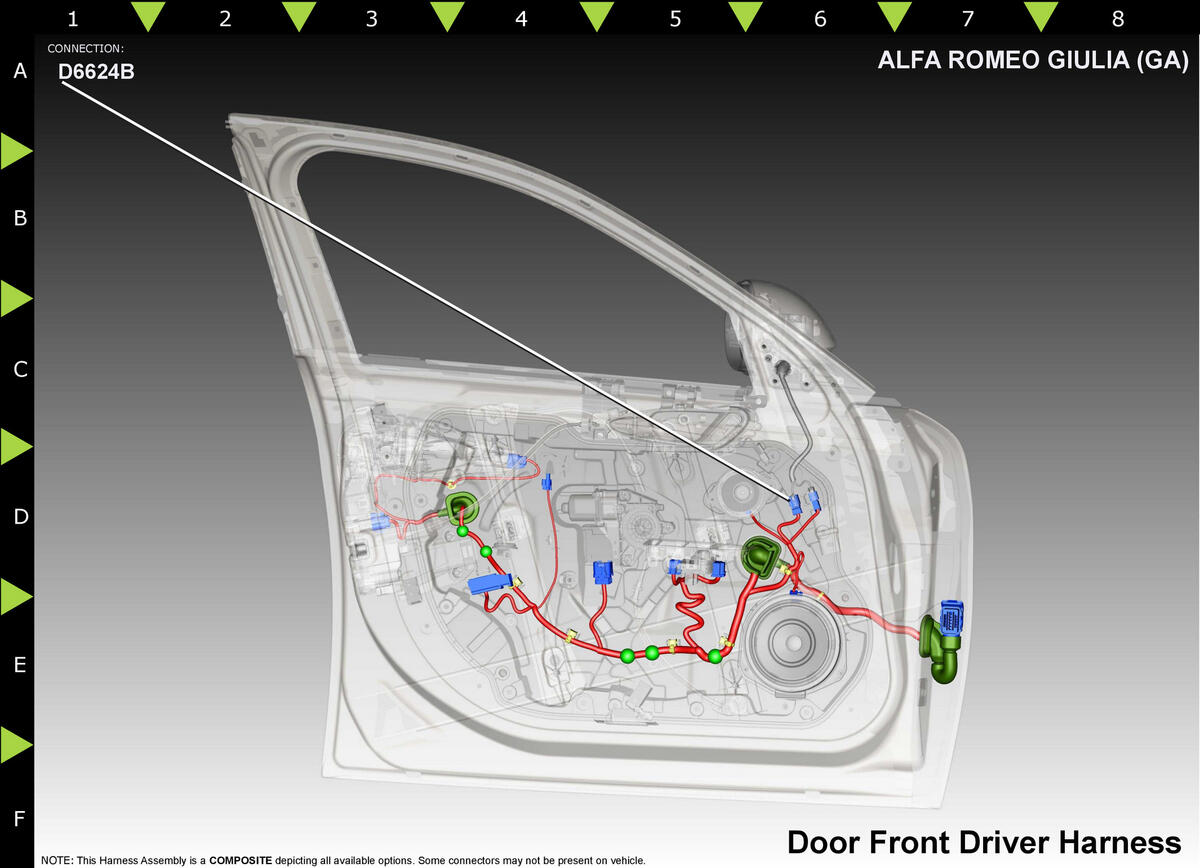

Mirror-Outside Rearview-Driver C2 (Standard) Connector End View (D6624B)
Harness-Family: Door_Front_Driver
Color: NATURAL
Gender: MALE
Part Number: 2-1719843-5
Part Description: Not Available
Connector No: D6624B
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P112 | BN/DB | 0.35 | AUTO DAY/NIGHT MIRROR (+) | EC MIRROR | ||
| 2 | P694 | YE/RD | 0.35 | PWR FOLD MIRROR FOLD DRIV | HEATED MIRRORS | ||
| 3 | P711 | GN | 0.35 | LEFT BLIND SPOT INDICATOR DRIVER | BLIND SPOT | ||
| 4 | P114 | BN/GN | 0.35 | AUTO DAY/NIGHT MIRROR (-) | EC MIRROR | ||
| 5 | P691 | YE/DB | 0.35 | PWR FOLD MIRROR UNFOLD DRIV | HEATED MIRRORS | ||
| 6 | A857 | DB/OG | 0.35 | FUSED B(+) | PREMIUM | ||
| 7 | P64 | GY/BN | 0.35 | PASSENGER MIRROR VERTICAL POSITION SIGNAL | PREMIUM | ||
| 8 | P68 | WH/OG | 0.35 | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL | PREMIUM | ||
| 9 | P66 | BK/OG | 0.35 | PASSENGER MIRROR SENSOR GROUND | PREMIUM | ||
| 10 | Z331 | BK | 0.35 | GROUND | BLIND SPOT | ||
|
|||||||
