Sensor-Oil Temperature 2 (2.0L) Connector End View (D1544A)

Harness-Family: Engine_20L

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: D1544A

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sensor-Oil Temperature 2 Connector End View (2.0L)

Courtesy of CHRYSLER

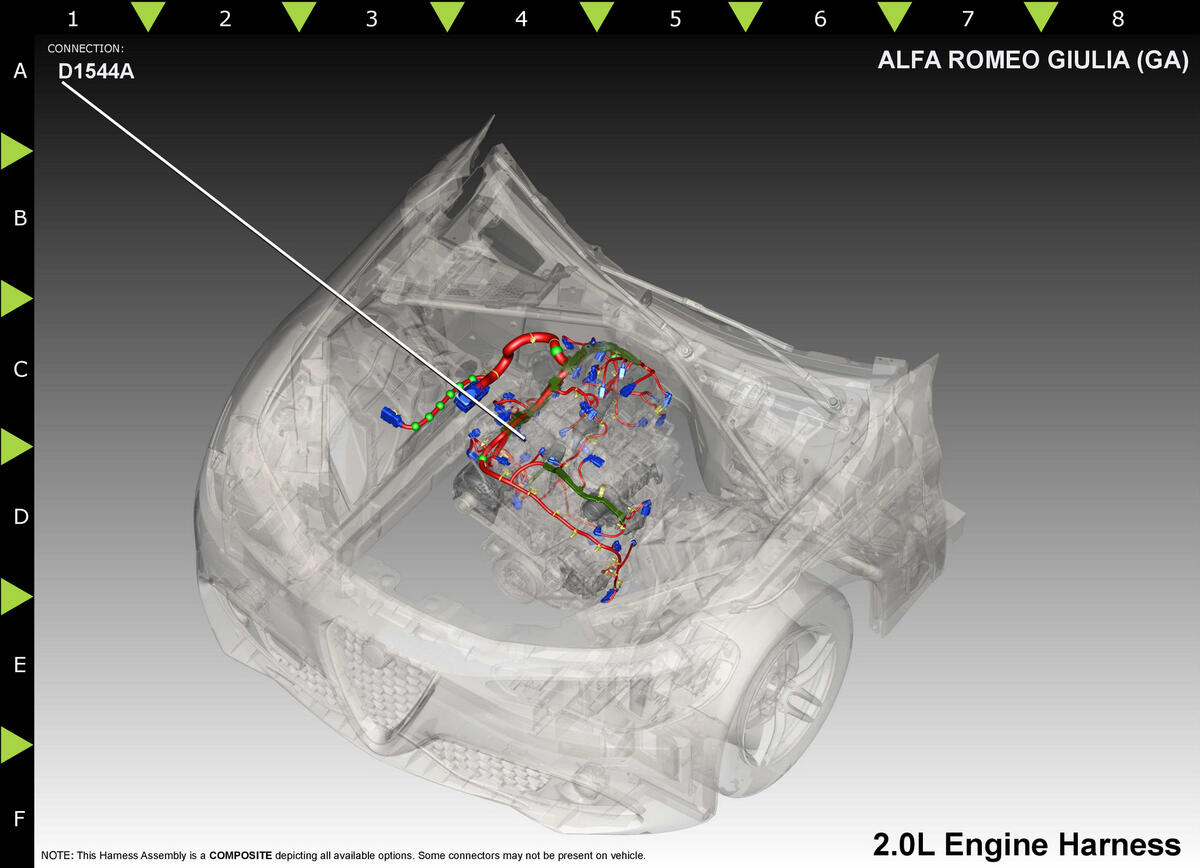

Fig 2: Sensor-Oil Temperature 2 Component Location (2.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G224

VT/BN

0.35

EOT SIGNAL

2.0L

K916

BN/OG

0.35

SENSOR GROUND

2.0L

⁽¹⁾	Pins not listed are not used for this connector
