Sf853 (2.0L) Connector End View (Sf853)

Harness-Family: Engine_20L

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SF853

Option: 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sf853 Connector End View (2.0L)

GCWD1006420

Courtesy of CHRYSLER

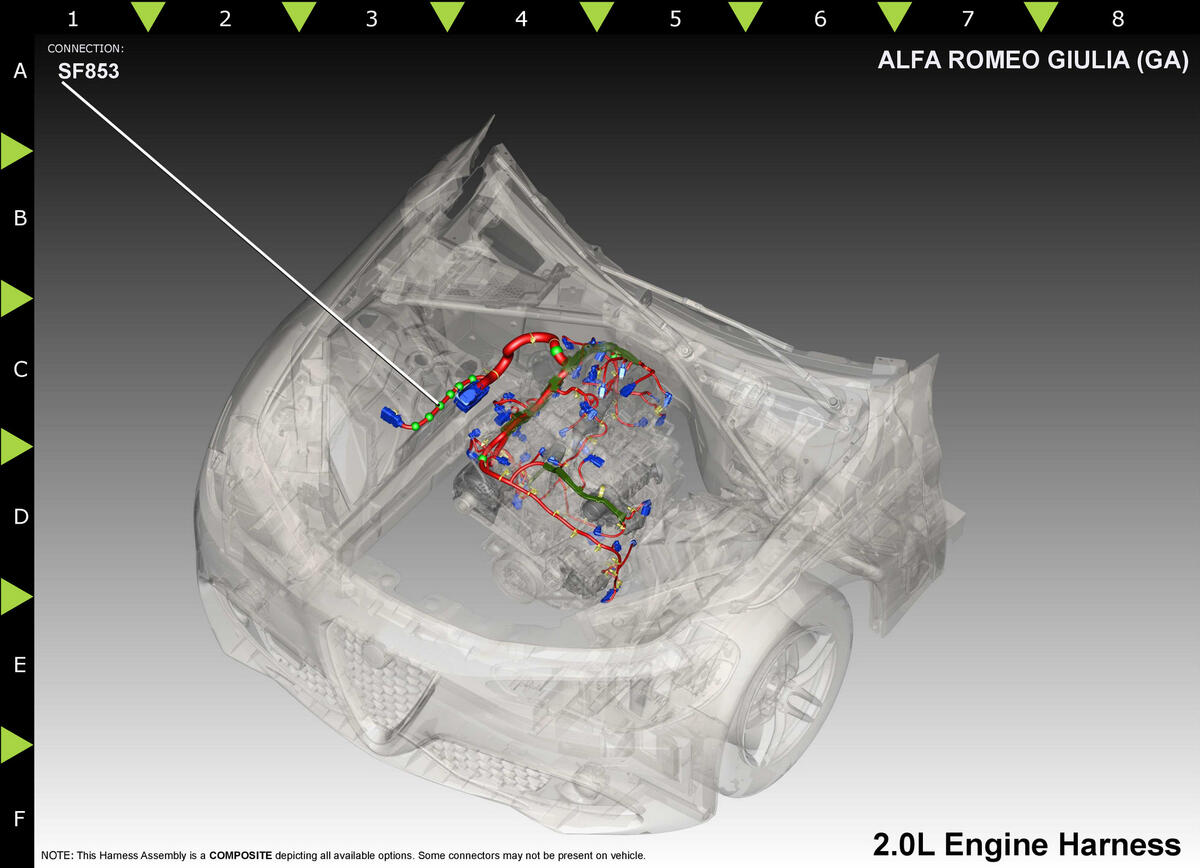

Fig 2: Sf853 Component Location (2.0L)

GCWD1268063

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F853

BN/VT

0.35

5 VOLT SUPPLY

2.0L

⁽¹⁾	Pins not listed are not used for this connector
