Speaker-Subwoofer (Premium 2) Connector End View (D5920A)

Harness-Family: Amplifier_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 19017_000_000

Part Description: Not Available

Connector No: D5920A

Option: PREMIUM 2

Repair Kit Part Number: Not Available

Cavity Count: null

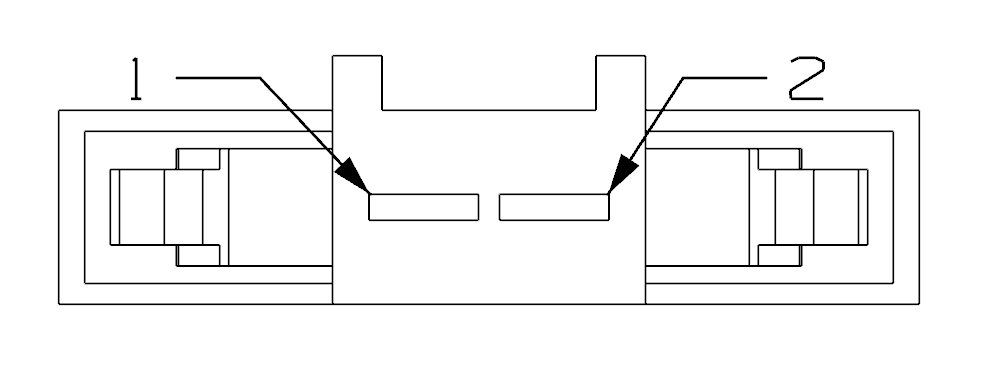

Fig 1: Speaker-Subwoofer Connector End View (PREMIUM 2)

Courtesy of CHRYSLER

Fig 2: Speaker-Subwoofer Component Location (PREMIUM 2)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X390

VT/BK

1.0

AMPLIFIED SUBWOOFER 1 (-)

PREMIUM 2

X300

1.0

AMPLIFIED SUBWOOFER 1 (+)

PREMIUM 2

⁽¹⁾	Pins not listed are not used for this connector
