Fuse F03 30A (Standard) Connector End View (F03)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F03

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Fuse F03 30a Connector End View (Standard)

Courtesy of CHRYSLER

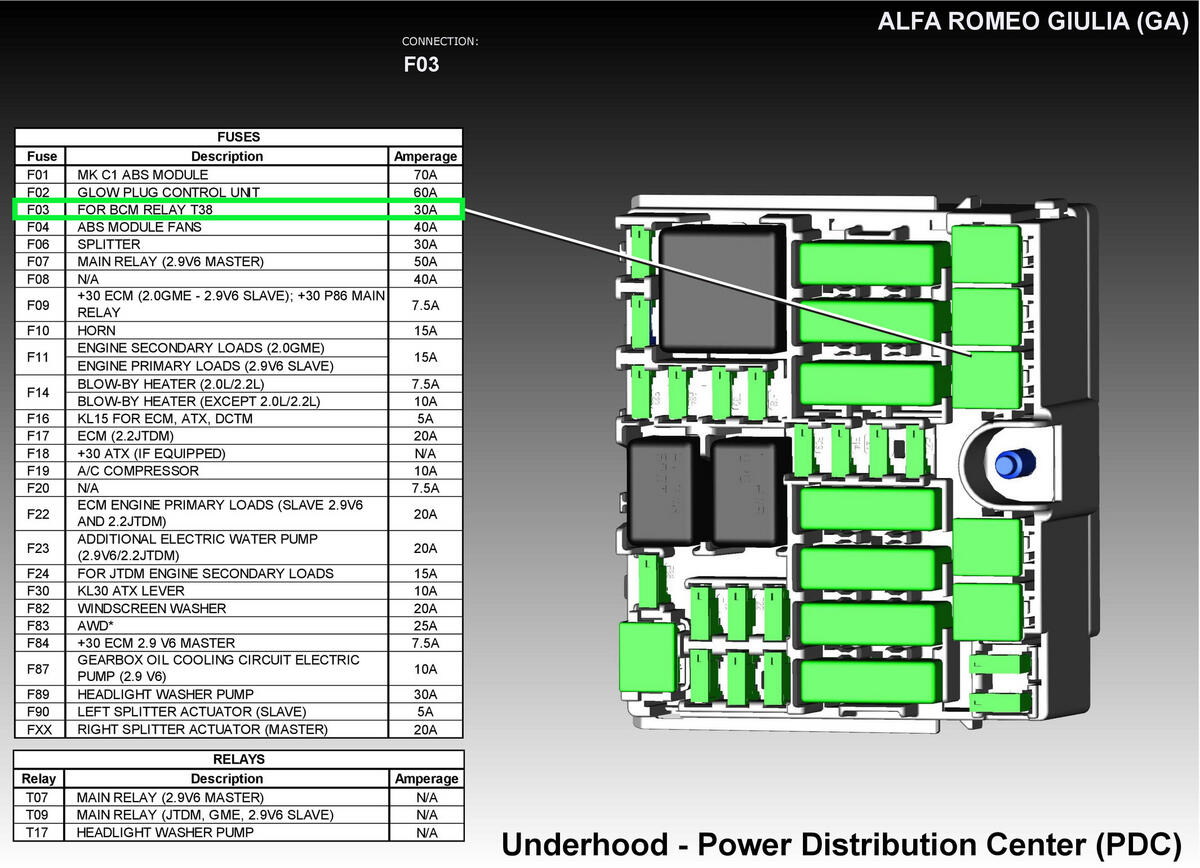

Fig 2: Fuse F03 30a Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A901

INTERNAL

FUSED B(+)

EXPORT

⁽¹⁾	Pins not listed are not used for this connector
