S1028 (Standard) Connector End View (S1028)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1028

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S1028 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

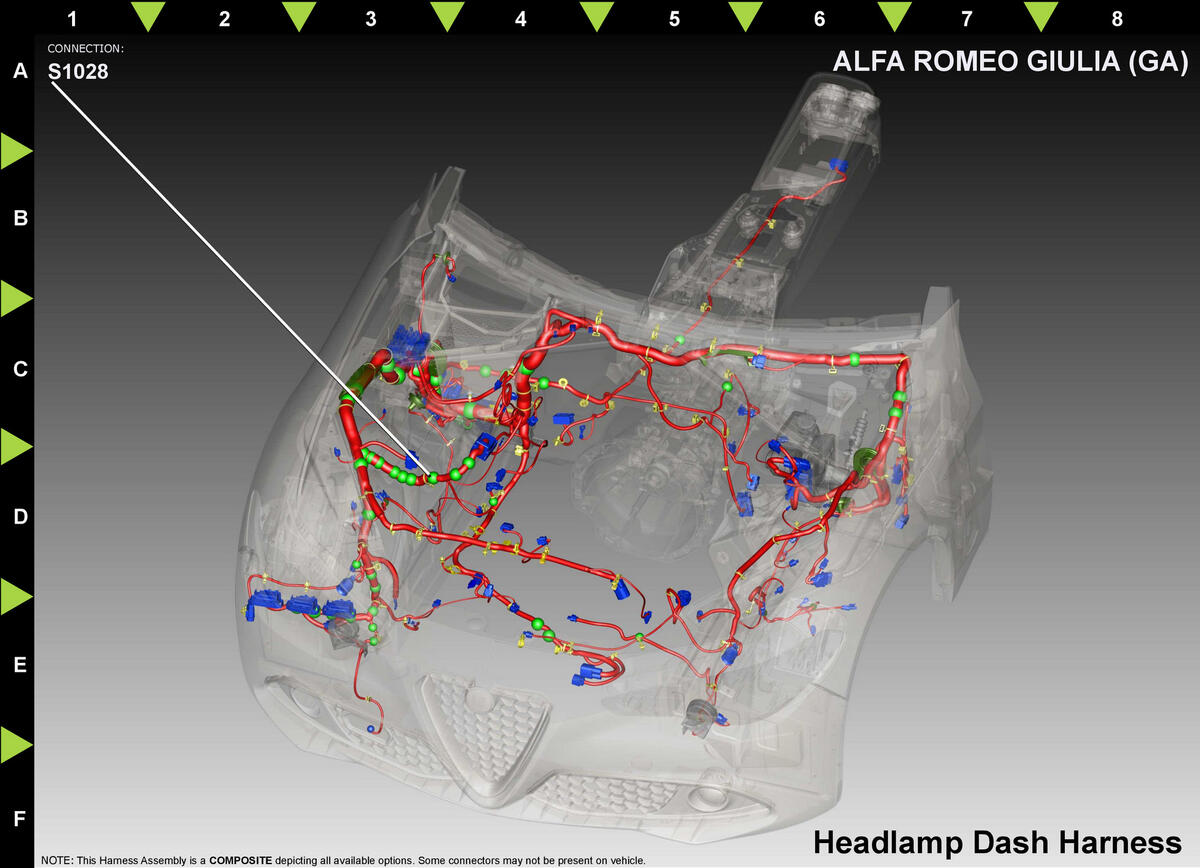

Fig 2: S1028 Component Location (Standard)

GCWD1267729

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K852

DB/WH

0.5

5 VOLT SUPPLY

2.0L GPF/2.0L

2

K852

DB/WH

0.5

5 VOLT SUPPLY

2.0L GPF/2.0L

3

K852

DB/BK

0.75

5 VOLT SUPPLY

2.0L GPF

4

K852

OG/BK

0.5

5 VOLT SUPPLY

2.0L GPF/2.0L

⁽¹⁾	Pins not listed are not used for this connector
