S104 (Standard) Connector End View (S104)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S104

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S104 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

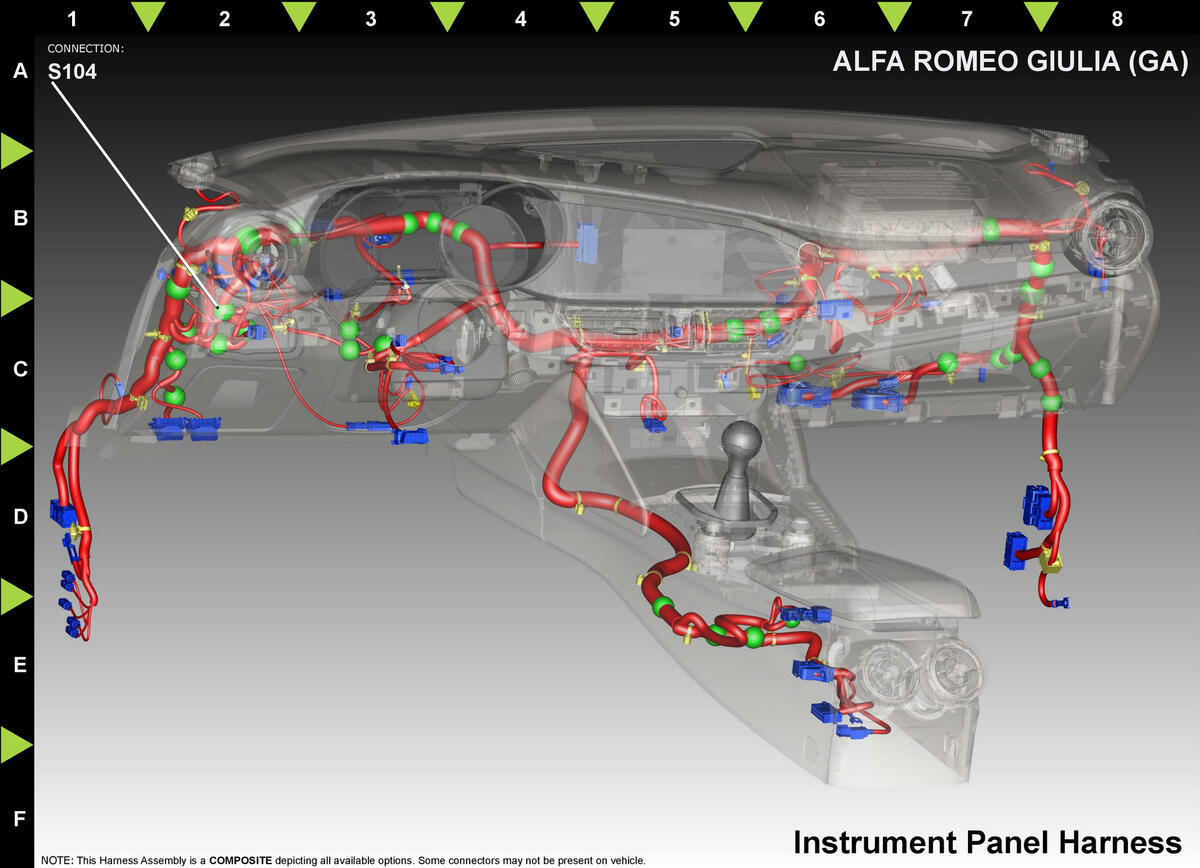

Fig 2: S104 Component Location (Standard)

GCWD1267475

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D437

DB

0.35

CAN IHS (+) AT

N/A

2

D437

DB

0.35

CAN IHS (+) AT

N/A

3

D437

DB

0.35

CAN IHS (+) AT

N/A

⁽¹⁾	Pins not listed are not used for this connector
