S208 (Standard) Connector End View (S208)

Harness-Family: Transmission_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S208

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S208 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

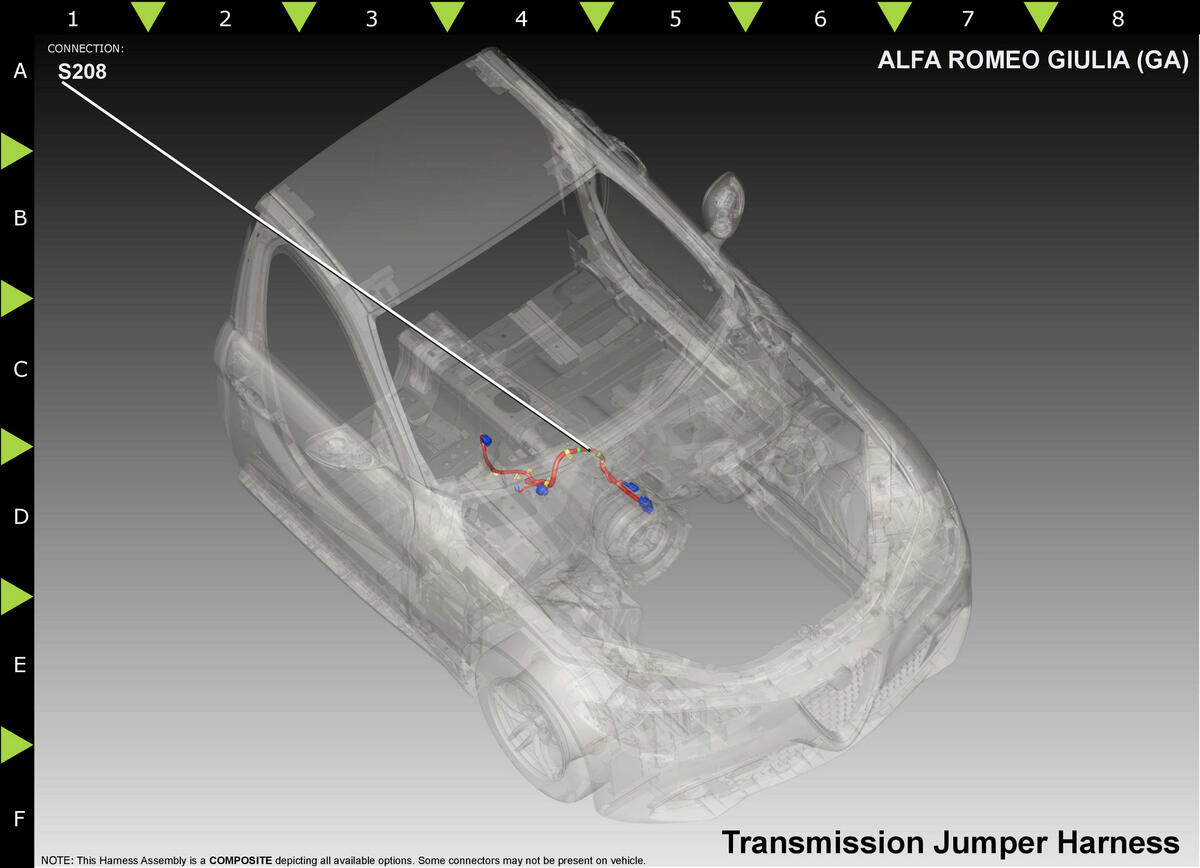

Fig 2: S208 Component Location (Standard)

GCWD1267904

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D11

GN

0.5

CAN C (+)

N/A

2

D11

GN

0.5

CAN C (+)

N/A

3

D11

GN

0.5

CAN C (+)

N/A

4

D11

GN

0.5

CAN C (+)

N/A

5

D11

GN

0.5

CAN C (+)

AWD EU6

⁽¹⁾	Pins not listed are not used for this connector
