Relay-Water Pump (2.9L) Connector End View (T52)

Harness-Family: Aux_PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: T52

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Water Pump Connector End View (2.9L)

GCWD1006402

Courtesy of CHRYSLER

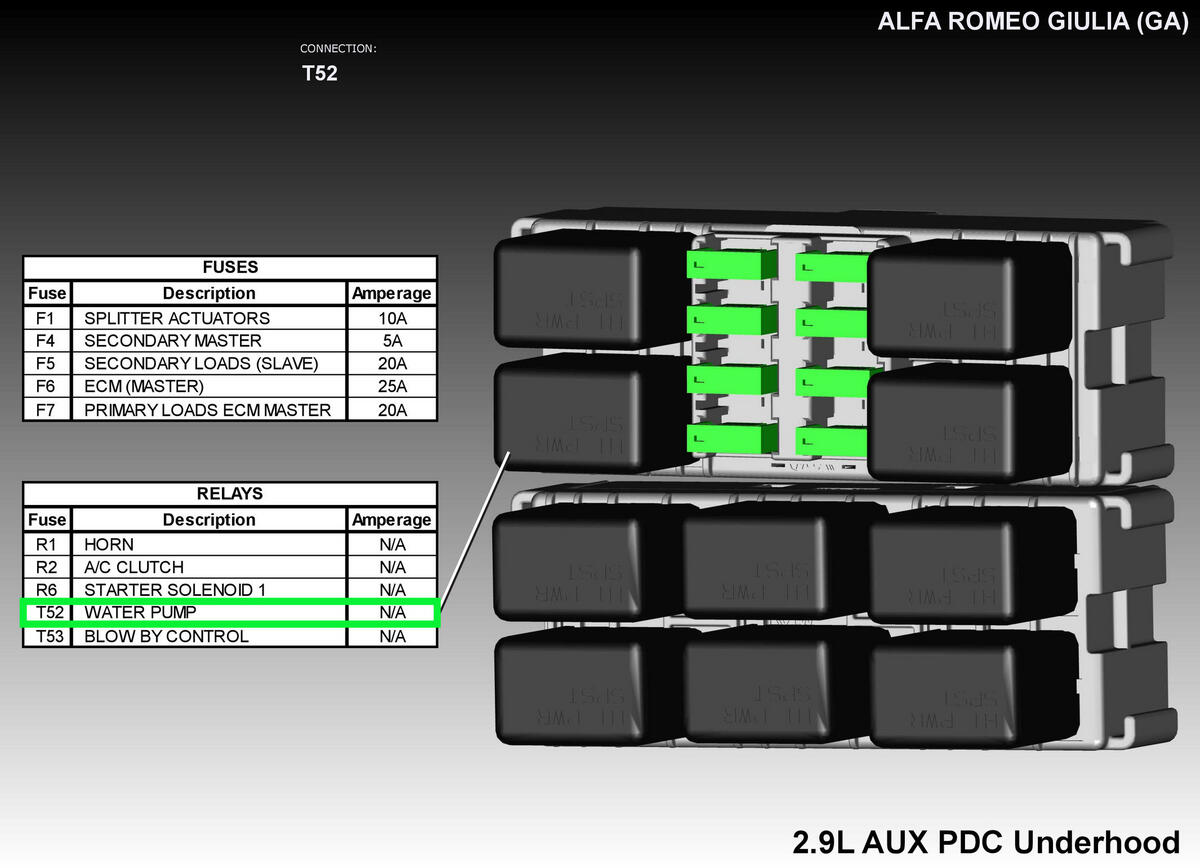

Fig 2: Relay-Water Pump Component Location (2.9L)

GCWD1267202

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

30

A901

INTERNAL

NA

FUSED B(+)

2.9L

86

F343

INTERNAL

NA

FUSED ASD RELAY OUTPUT

2.9L

87

F105

INTERNAL

NA

ELECTRIC COOLANT PUMP OUTPUT

2.9L

⁽¹⁾	Pins not listed are not used for this connector
