Sensor-Intelligent Battery C2 (Standard) Connector End View (D2550B)

Harness-Family: Battery_Negative

Color: BLACK

Gender: FEMALE

Part Number: 1/16851/54

Part Description: Not Available

Connector No: D2550B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

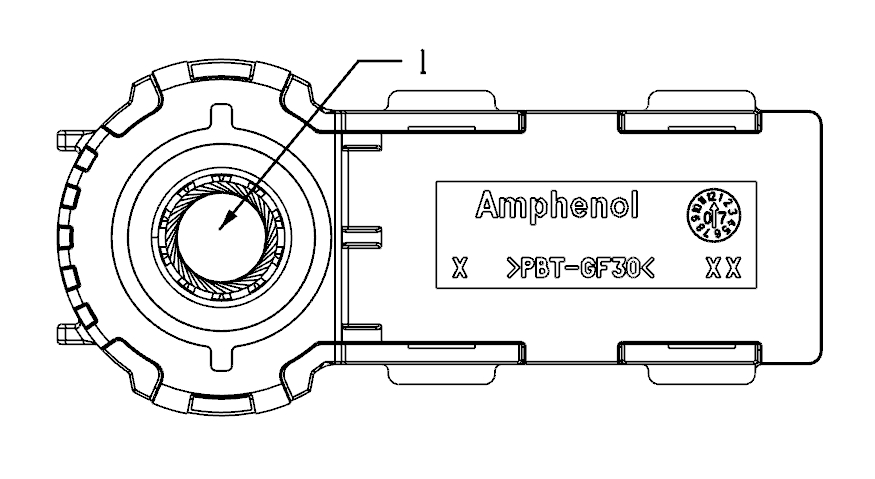

Fig 1: Sensor-Intelligent Battery C2 Connector End View (Standard)

Courtesy of CHRYSLER

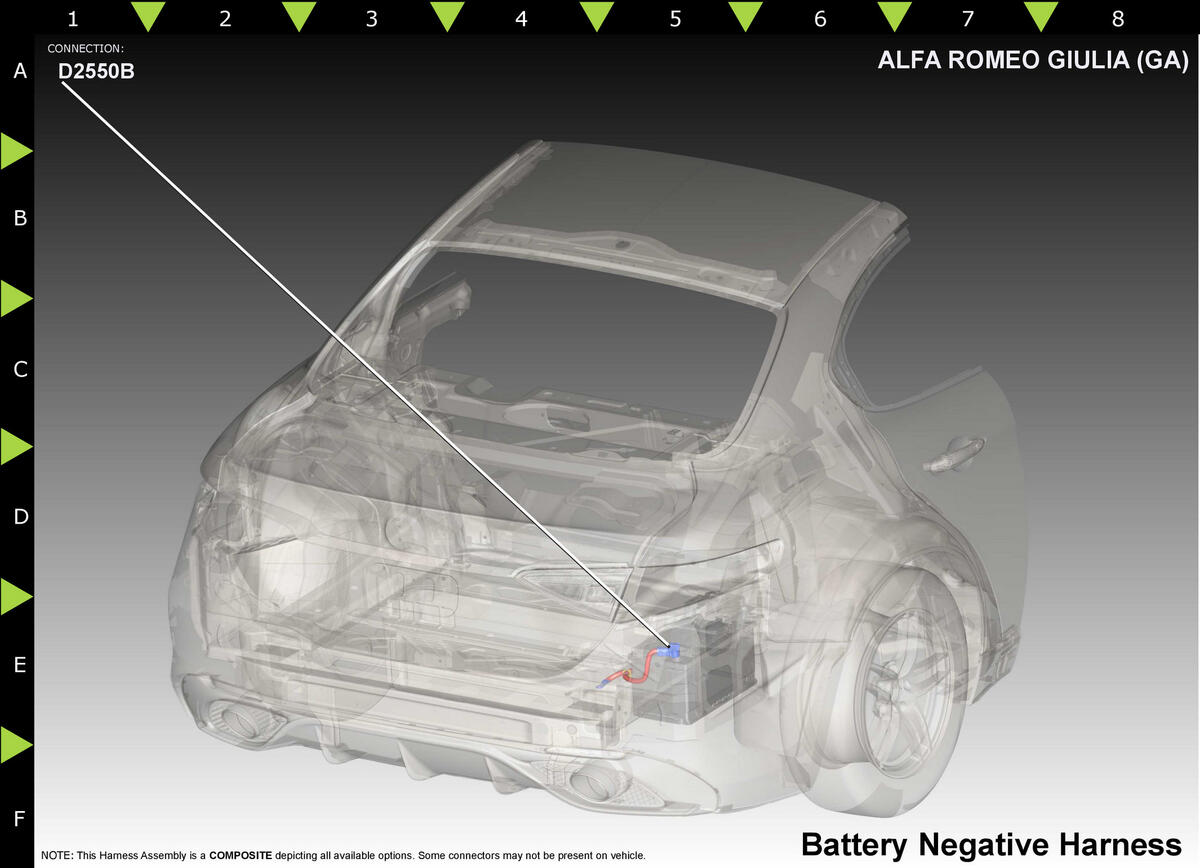

Fig 2: Sensor-Intelligent Battery C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
