S168 (Standard) Connector End View (S168)

Harness-Family: Fascia_Rear

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S168

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S168 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

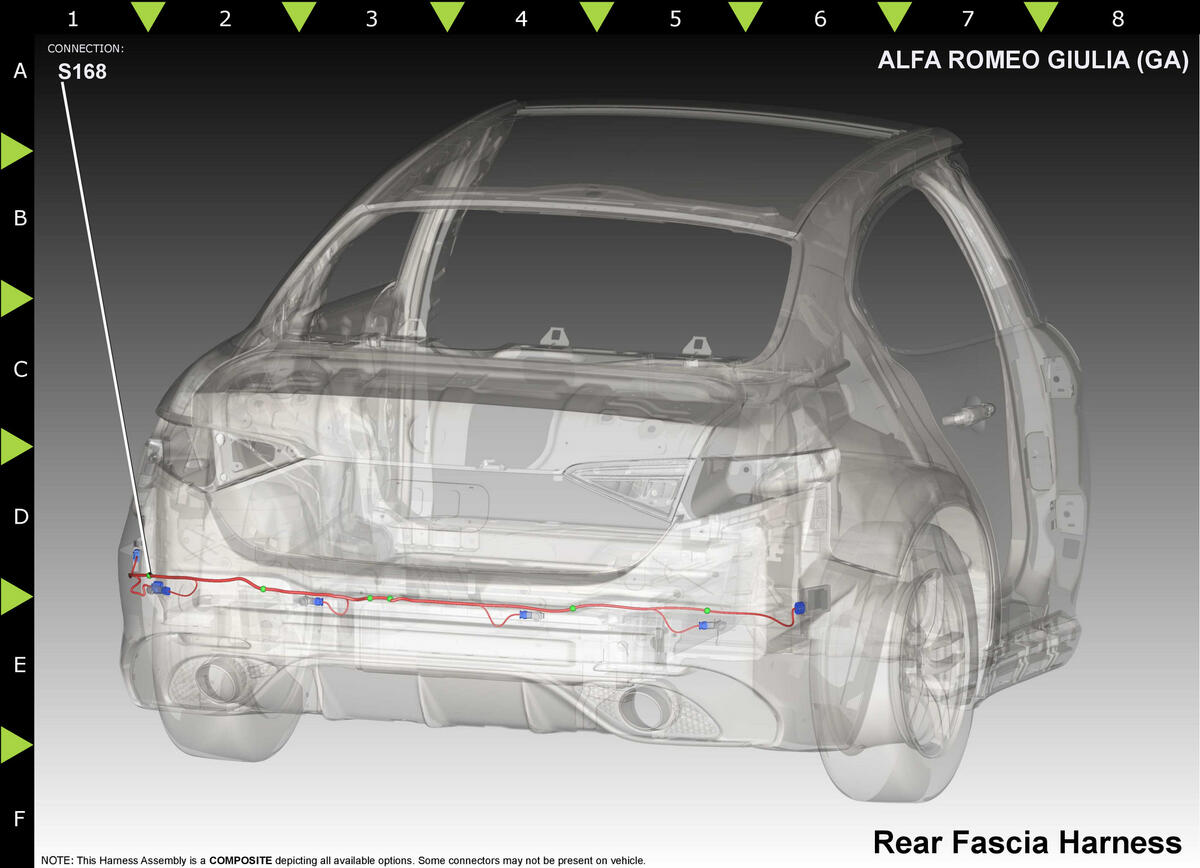

Fig 2: S168 Component Location (Standard)

GCWD1267190

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST

2

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST

3

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST

4

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST

5

X750

BK/VT

0.35

REAR PARK ASSIST SENSOR GROUND

PARK ASSIST

⁽¹⁾	Pins not listed are not used for this connector
