Radio C4 (Standard) Connector End View (D2784D)

Harness-Family: IP

Color: WHITE

Gender: FEMALE

Part Number: 1/13110/90

Part Description: Not Available

Connector No: D2784D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

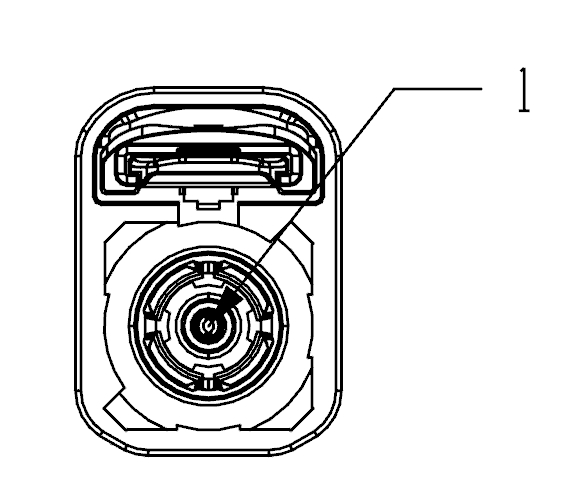

Fig 1: Radio C4 Connector End View (Standard)

Courtesy of CHRYSLER

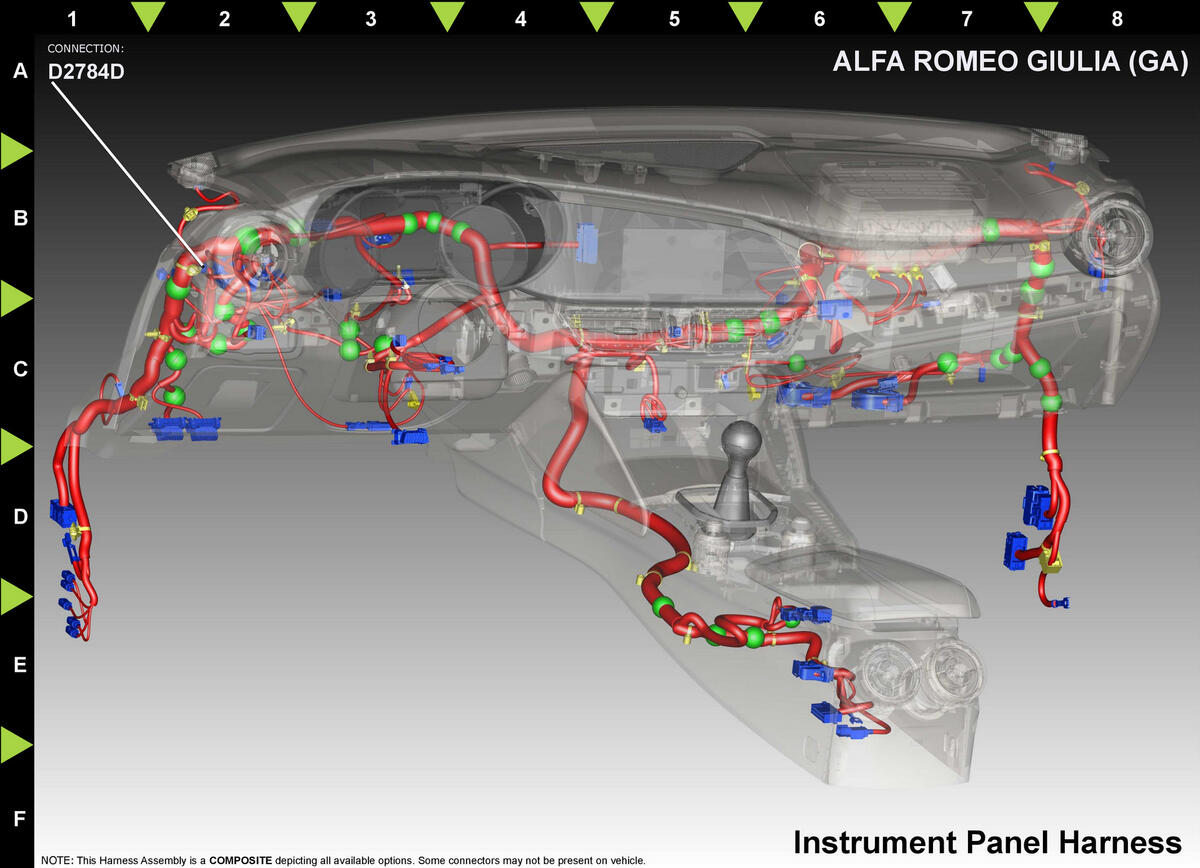

Fig 2: Radio C4 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X455

5.2

UCI USB POWER TO RADIO

N/A

⁽¹⁾	Pins not listed are not used for this connector
