Relay-A/C Clutch (2.0L/2.2L) Connector End View (R1A)

Harness-Family: Aux_PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: R1A

Option: 2.0L/2.2L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-A/c Clutch Connector End View (2.0L/2.2L)

Courtesy of CHRYSLER

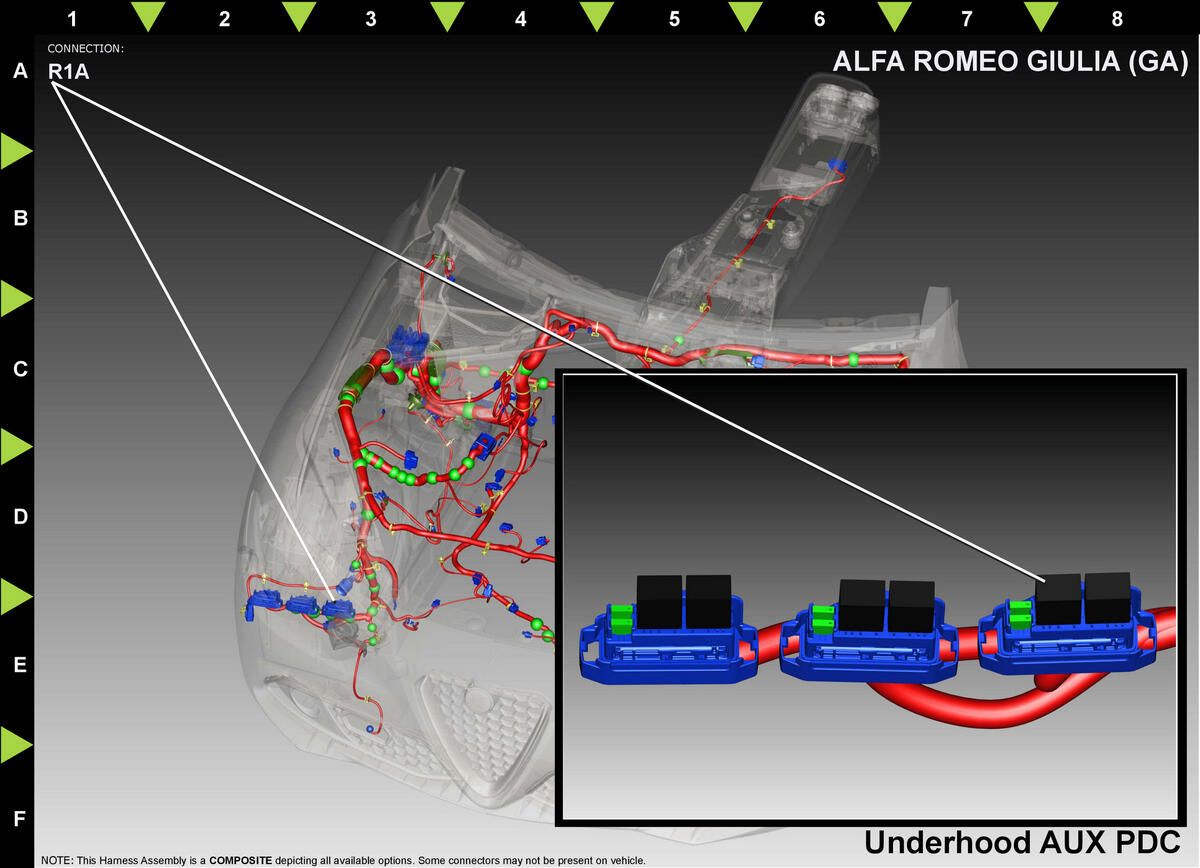

Fig 2: Relay-A/c Clutch Component Location (2.0L/2.2L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A901

INTERNAL

FUSED B(+)

2.0L/2.2L

C281

INTERNAL

A/C CLUTCH RELAY CONTROL

2.0L/2.2L

F741

INTERNAL

IGNITION RUN/START OUTPUT

2.0L/2.2L

INTERNAL

A/C CLUTCH CONTROL OUTPUT

2.0L/2.2L

⁽¹⁾	Pins not listed are not used for this connector
