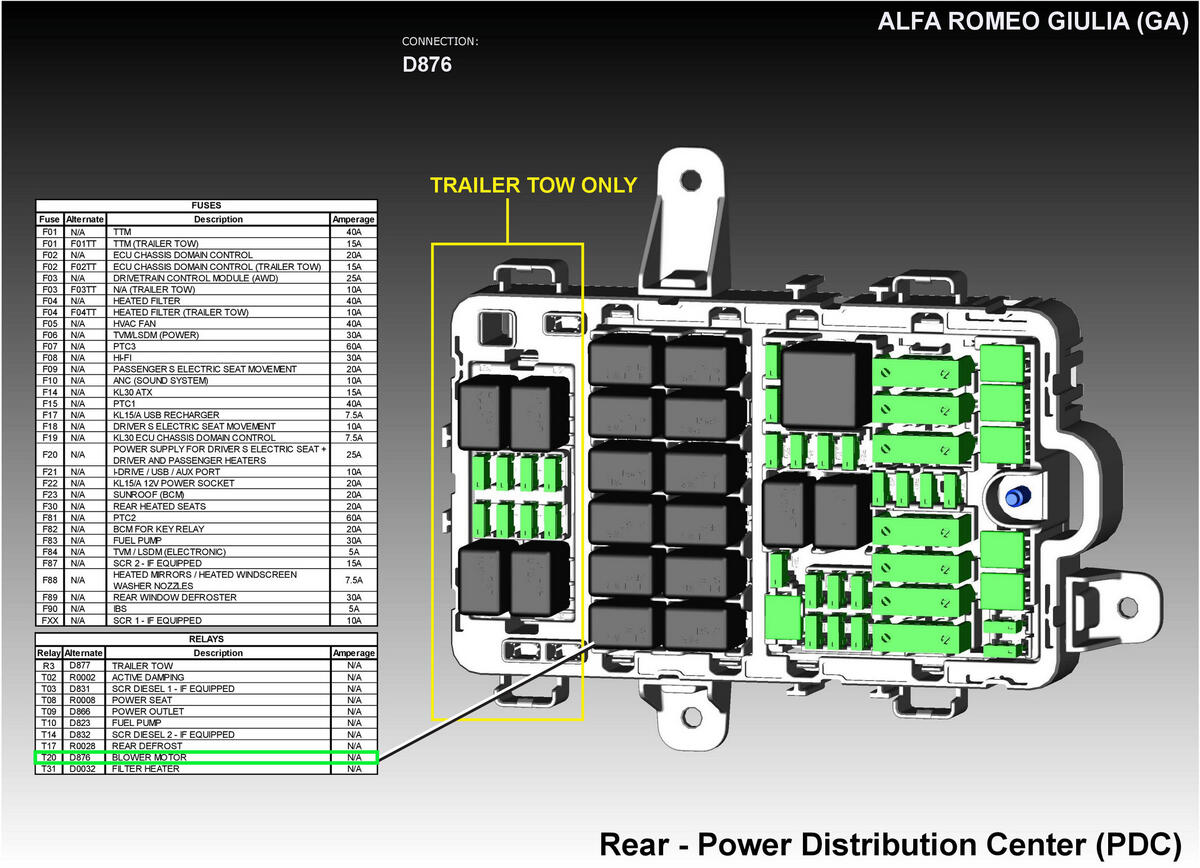

Relay-Blower Motor (Standard) Connector End View (D876)
Harness-Family: PDC_Rear
Color: NA
Gender: MALE
Part Number: Relay_Mini
Part Description: Not Available
Connector No: D876
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 30 | A901 | NA | NA | FUSED B(+) | N/A | ||
| 85 | Z342 | NA | NA | GROUND | N/A | ||
| 86 | F741 | NA | NA | IGNITION RUN/START OUTPUT | N/A | ||
| 87 | F745 | NA | NA | GENERIC IGN RUN/START 5 | N/A | ||
|
|||||||
