Coil-Ignition 3 (2.9L) Connector End View (D5206A)

Harness-Family: Injector_RT

Color: BLACK

Gender: FEMALE

Part Number: 1/08822/97

Part Description: Not Available

Connector No: D5206A

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Coil-Ignition 3 Connector End View (2.9L)

GCWD1084506

Courtesy of CHRYSLER

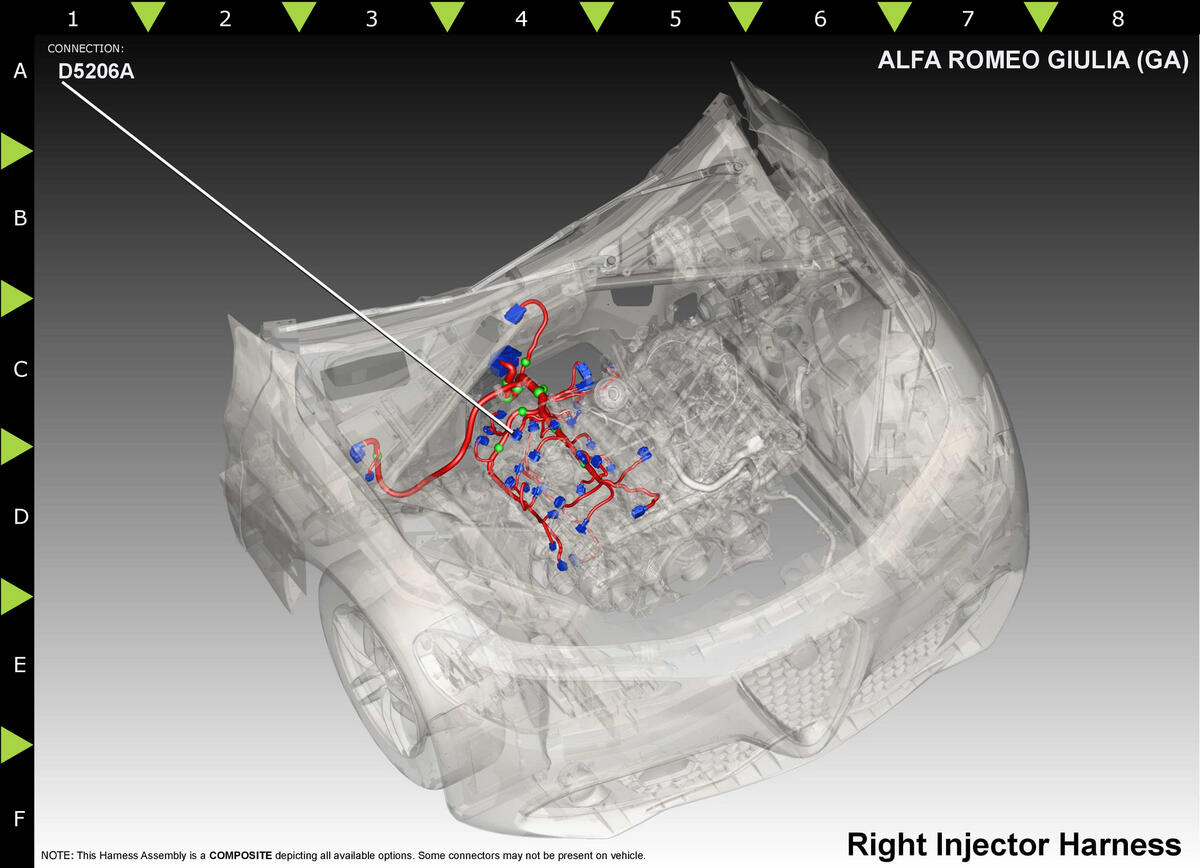

Fig 2: Coil-Ignition 3 Component Location (2.9L)

GCWD1267664

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F343

RD

1

FUSED ASD RELAY OUTPUT

2.9L

2

Z909

BK

1.5

GROUND

2.9L

3

K18

GY/RD

0.75

COIL CONTROL 3

2.9L

4

Z72

YE

0.50

IONIZATION SIGNAL 3

2.9L

⁽¹⁾	Pins not listed are not used for this connector
