Display-Screen Center Stack (Standard) Connector End View (D2996A)

Harness-Family: LVDS_Jumper

Color: BORDEAUX

Gender: FEMALE

Part Number: 2236326-5

Part Description: Not Available

Connector No: D2996A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

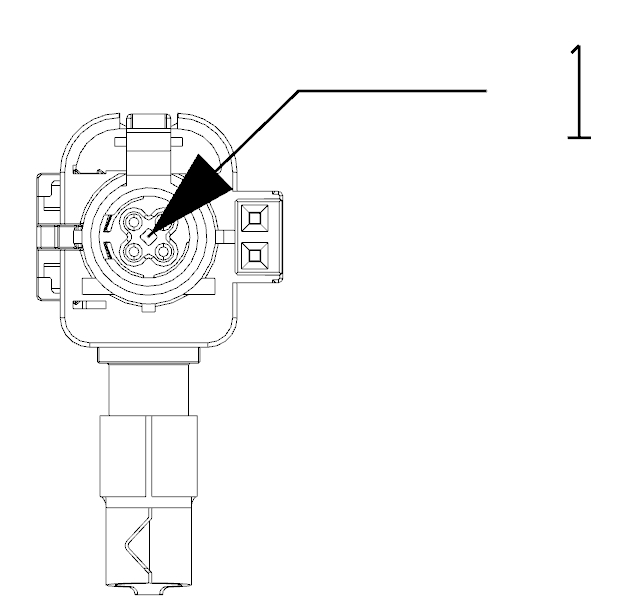

Fig 1: Display-Screen Center Stack Connector End View (Standard)

Courtesy of CHRYSLER

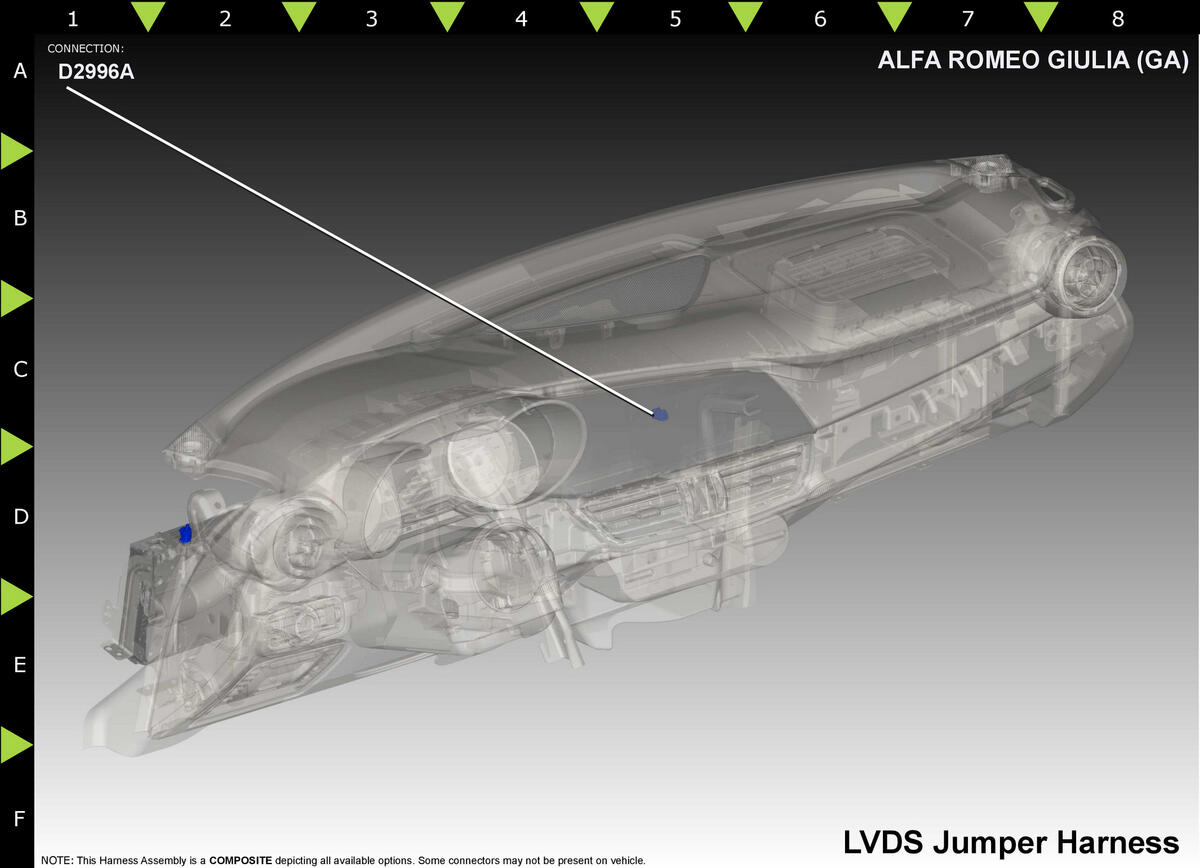

Fig 2: Display-Screen Center Stack Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X912

0.35

VIDEO LVDS DATA 0 (+)

N/A

X913

0.35

VIDEO LVDS DATA 1 (-)

N/A

X914

0.35

VIDEO LVDS DATA 1 (+)

N/A

X911

0.35

VIDEO LVDS DATA 0 (-)

N/A

A901

0.5

FUSED B(+)

N/A

Z908

0.5

GROUND

N/A

X536

0.35

VIDEO SHIELD 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
