Battery Tester

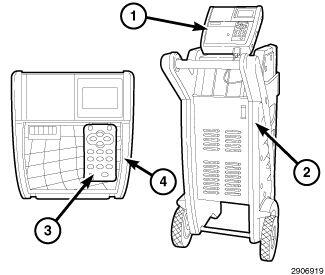

GC0143822Courtesy of CHRYSLER GROUP, LLC
  1. Control module:  Backlit graphical display and keypad for data entry.
  2. ON/OFF switch:  ON/OFF switch turns power on and off to the GR8.
  3. STATUS light:  Lights in conjunction with beeping alarm to indicate transitions and warnings.
  4. Data card slot:  For future upgrades via a data card. The slot contains a plastic filler card for protection.
