Battery Cable Junction Block To Generator And Starter: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

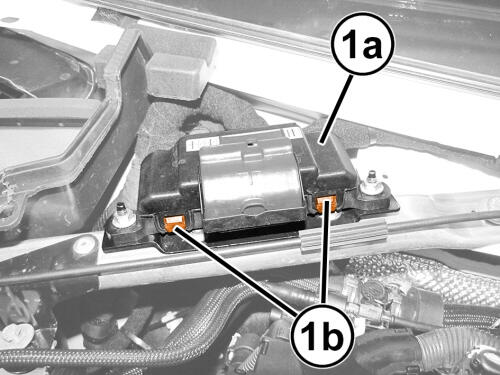

- Remove the cover to the junction block (1a) by pushing in the retainers (1b).

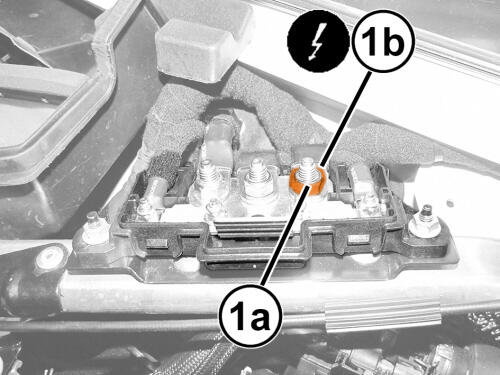

- Remove the nut (1a) from the stud (1b) and move the cable aside.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION
.

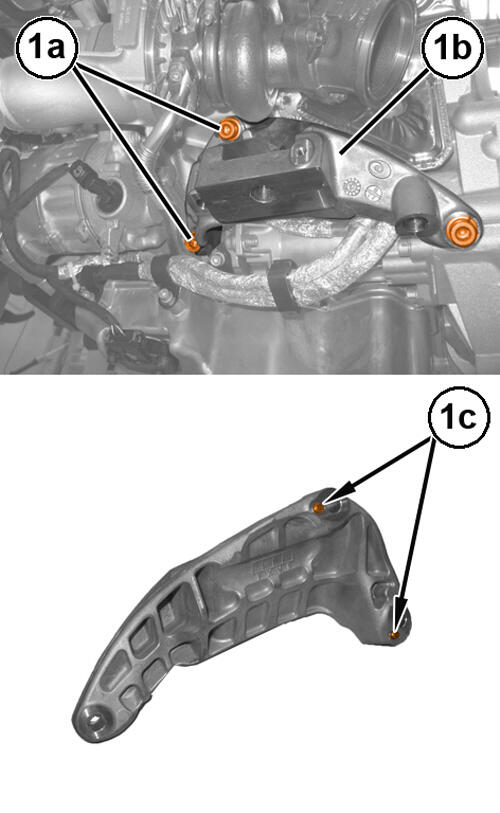

- Remove the bolts (1a) from the engine mount (1b) and remove it from the vehicle.

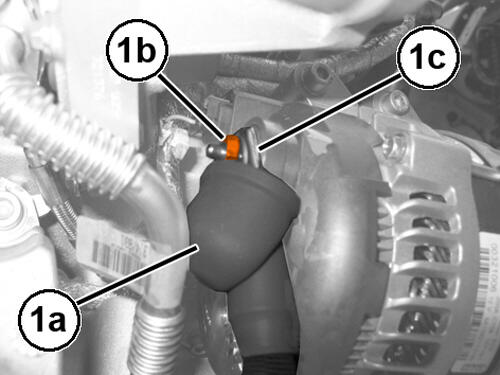

- Remove the cover (1a) from the generator B+ and remove the nut (1b) from the generator B+ stud (1c).

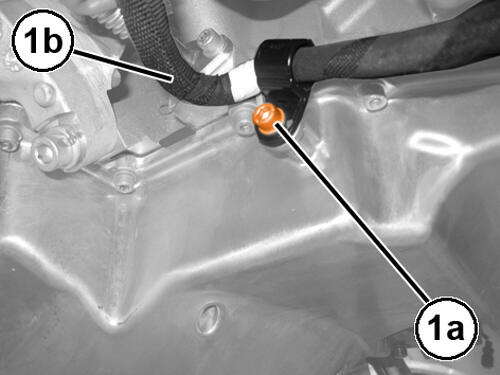

- Remove the bolt (1a) from the wiring harness retainer.

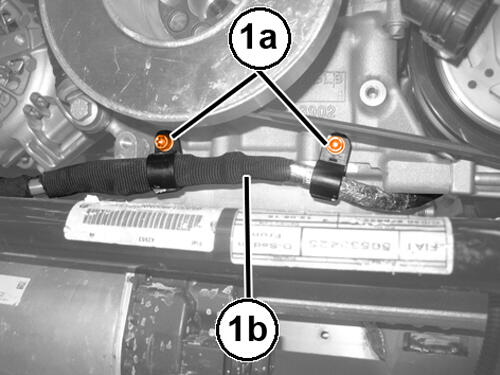

- Remove the bolts (1a) retaining the wiring harness (1b) from the engine.

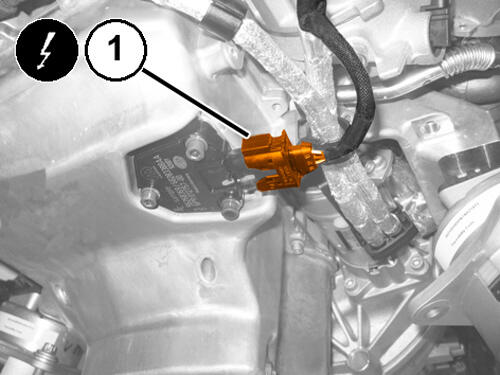

- Remove the wiring harness connector (1) from the engine oil level sensor.

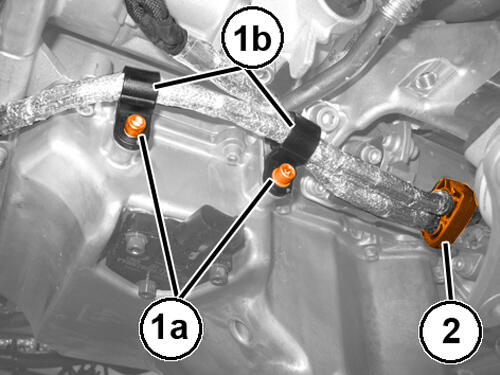

- Remove the bolts (1a) for the retainers (1b) and remove the retainer (2) from the engine.

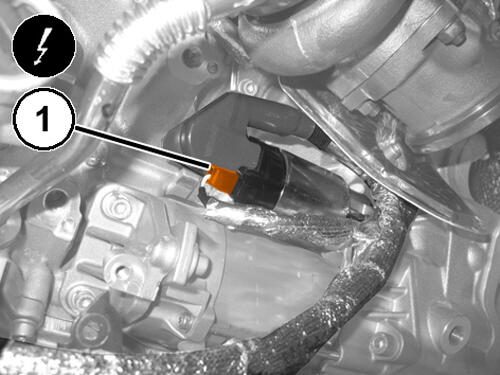

- Remove the starter electrical connector (1).

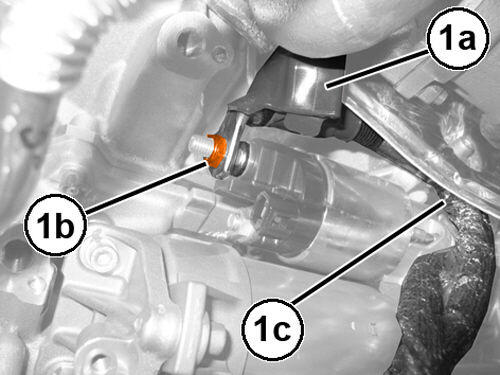

- Remove the nut (1b) from the B+ stud on the starter and remove the wiring from the vehicle.
