Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Position a jack under the rear knuckle for support.

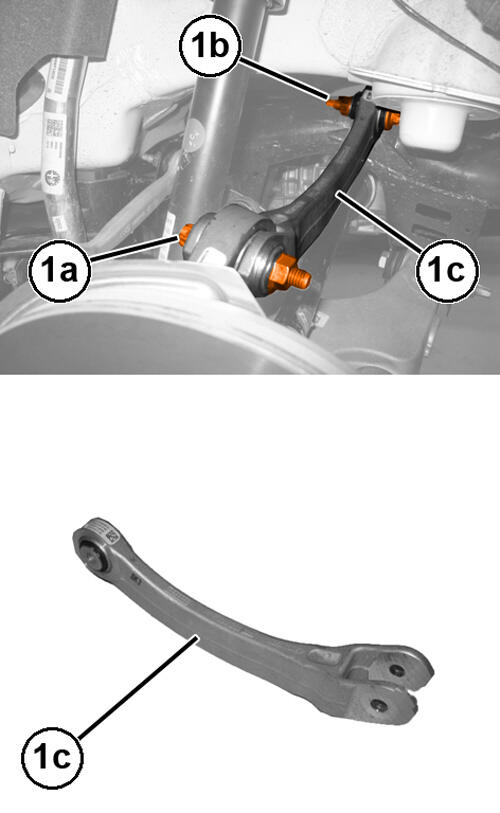

    GC0193702Courtesy of CHRYSLER GROUP, LLC
  4. Remove and DISCARD  the camber link to knuckle mounting bolt (1a).
  5. Remove and DISCARD  the camber link to crossmember mounting bolt (1b).
  6. Remove the camber link (1c) from the vehicle.
