Removal And Installation: Installation
- Position the camber link in place on the vehicle.
- Install a NEW camber link to crossmember mounting bolt. Do not tighten at this time.
- Install a NEW
camber link to knuckle mounting bolt. Do not tighten at this time.
- Install the wheel studs on the hub and bearing without tightening.

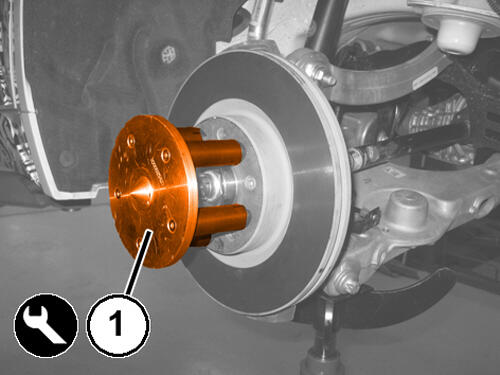

- Mount the special tool (special tool #2000025100, Measuring Tool, Wheel Centering) (1) on the wheel stud heads.

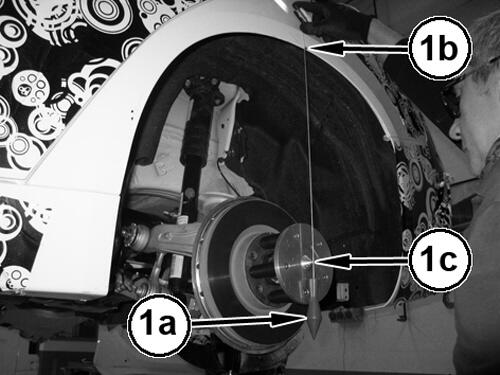

- Using an appropriate plump-bob (2a) determine and mark the stud curvature (2b) that corresponds to the wheel axle (2c).

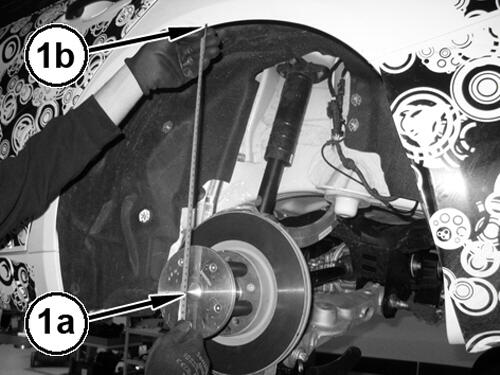

- Lift the lower control arm up until the height 366.5 mm between the wheel center (1a) and the corresponding mark on the wheel arch (1b).
- Tighten the camber link to crossmember mounting bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Tighten the camber link to knuckle mounting bolt to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Remove special tool, Measuring Tool, Wheel Centering 2000025100.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
