Removal And Installation: Removal

NOTE:

Quadrifoglio model shown in illustration base model similar.

NOTE:

Removal and installation process is the same for both sides of the vehicle.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .

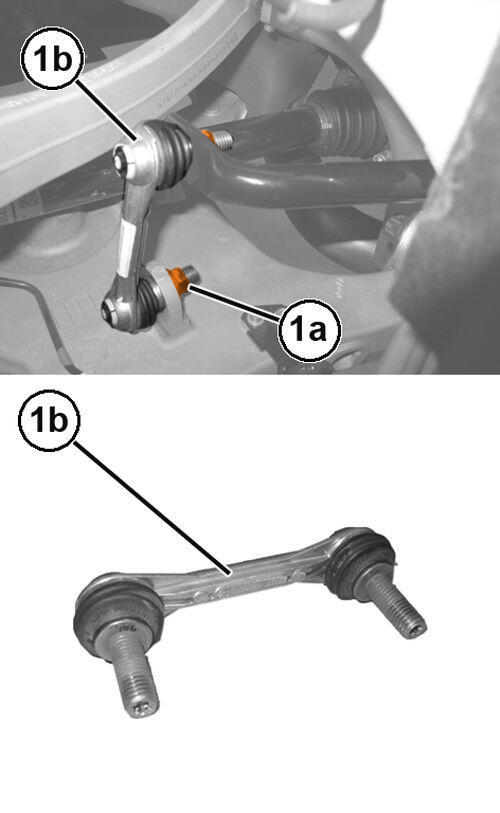

    GC0198417Courtesy of CHRYSLER GROUP, LLC
  3. Remove and DISCARD  the stabilizer bar link to stabilizer bar mounting nut (1a).
  4. Remove and DISCARD  the stabilizer bar link to lower control arm mounting nut (1a).
  5. Remove the stabilizer bar link (1b) from the vehicle.
