Removal And Installation: Installation
NOTE:

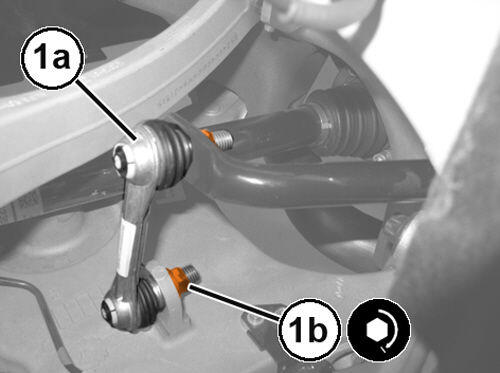

Quadrifoglio model shown in illustration base model similar.
NOTE:
Removal and installation process is the same for both sides of the vehicle.
- Position the stabilizer bar link in position on the vehicle.
- Install a NEW stabilizer bar link to lower control arm mounting nut and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install a NEW stabilizer bar link to stabilizer bar mounting bolt and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
